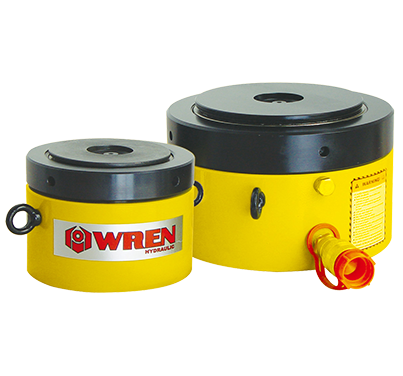

CLP series Single-Acting Pancake Lock Nut Cylinder

CLP series Single-Acting Pancake Lock Nut Cylinder

Capacity:60~520Ton

Stroke:45~50mm

Maximum Operating Pressure:700bar

CONTACT US

Product characteristics

- Flat design for using in confined area
- Lock-nut feature for positive and safe load holding over a long period of time
- Special bearing design with stands side load forces up to 3% of rated cylinder capacity

Operation manual

Click download

Specifications

Download parameter table

Product selection form

CLP Series Selection Chart

Capacity

(Ton)

Stroke

(mm)

Model

Min Height

(mm)

Outside

Diameter

(mm)

Effective

Area

(cm²)

Oil

Capacity

(cm³)

Saddle

Diameter

(mm)

Weight

(Kg)

60 50 CLP602 125 140 86.6 432 96 15
100 50 CLP1002 137 175 143.1 716 126 26
160 45 CLP1602 148 220 227 1022 160 44
200 45 CLP2002 155 245 283.5 1276 180 57
260 45 CLP2502 159 275 366.4 1649 200 74
400 45 CLP4002 178 350 559.9 2519 250 134
520 45 CLP5002 192 400 730.6 3287 290 189


technical data

-  Enerpac pancake lock nut cylinders have a flat design for use in confined areas

-  Safety lock nut for mechanical load holding

-  Single-acting load return

-  Special bearing design resists sideload forces

-  Overflow port functions as a stroke limiter

-  CR-400 coupler and dust cap included on all models
