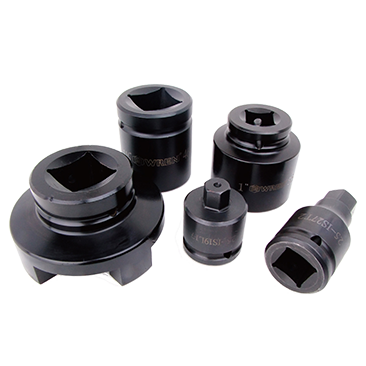

IMPACT Socket

Special sleeve for driving hydraulic torque wrench

CONTACT US

Product characteristics

Operation manual

Click download

Specifications

Download parameter table

Product selection form




Standard Sockets Selection Chart

Bolt Type

3/4"

07IBT/1IBT

1"

3IBT

1-1/2"

5,8,10IBT

2-1/2"

20,25,35,50IBT

D N Type L1 L2 L3 D1 D2 Type L1 L2 L3 D1 D2 Type L1 L2 L3 D1 D2 Type L1 L2 L3 D1 D2
M16 24 3/4"-S24 54 32 32 40 40

















M18 27 3/4"-S27 54 32 32 42 42

















M20 30 3/4"-S30 54 33 33 46 44 1"-S30 59 32 32 54 54











M22 34 3/4"-S34 54
 33 33 52 44 1"-S34 59 32 32 58 58











M24 36 3/4"-S36 57 33 33 54 44 1"-S36 62 32 32 59 59 1.1/2"-S36 85 44 44 74 74





M27 41 3/4"-S41 58 33 33 60 44 1"-S41 65 38 38 67 54 1.1/2"-S41 85 44 44 74 74





M30 46 3/4"-S46 63 38 38 66 44 1"-S46 65 38 38 74 54 1.1/2"-S46 85 44 44 74 74





M33 50 3/4"-S50 65 40 40 71 44 1"-S50 70 43 43 79 60 1.1/2"-S50 90 45 45 79 79





M36 55 3/4"-S55 70 45 45 77 54 1"-S55 80 42 52 84 60 1.1/2"-S55 90 45 45 84 84 2.1/2"-S55 100 57 57 86 114
M39 60





1"-S60 85 45 57 89 60 1.1/2"S60 100 45 57 94 75 2.1/2"S60 100 52 52 119 119
M42 65





1"-S65 84 45 57 98 70 1.1/2"-S65 100 45 57 98 80 2.1/2"S65 100 52 52 119 119
M45 70





1"-S70 90 50 52 107 70 1.1/2"-S70 105 50 62 104 80 2.1/2"S70 120 67 67 128 128
M48 75





1"-S75 95 50 65 108 70 1.1/2"-S75 110 50 65 118 85 2.1/2"-S75 120 67 67 128 128
M52 80











1.1/2"-S80 115 55 72 118 90 2.1/2"-S80 130 71 71 128 128
M60 90











1.1/2"-S90 125 60 77 139 90 2.1/2"-S90 140 61 73 139 139
M64 95











1.1/2"-S95 130 65 82 139 90 2.1/2"-S95 140 66 73 139 139
M68 100











1.1/2"-S100 135 70 87 144 90 2.1/2"-S100 140 71 81 148 130
M72 105











1.1/2"-S105 135 70 87 149 90 2.1/2"-S105 150 77 89 156 130
M76 110











1.1/2"-S110 135 70 87 158 90 2.1/2"-S110 150 72 90 158 130
M80 115











1.1/2"-S115 135 70 87 159 95 2.1/2"-S115 150 82 98 168 130
M85 120











1.1/2"-S120 135 70 87 168 95 2.1/2"-S120 150 82 98 178 130
M90 130











1.1/2"-S130 155 93 105 189 95 2.1/2"-S130 170 93 114 189 130
M95 135

















2.1/2"-S135 170 93 114 198 130
M100 145

















2.1/2"-S145 170 98 122 210 152
M105 150

















2.1/2"-S150 190 100 140 216 152
M110 155

















2.1/2"-S155 190 100 140 229 152
M115 165

















2.1/2"-S165 190 100 140 241 152



technical data
