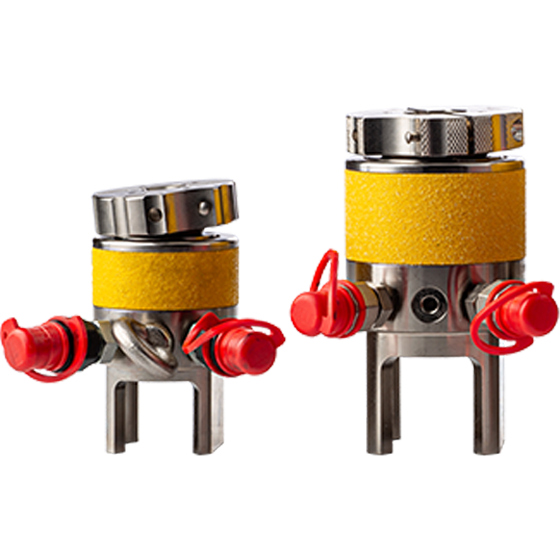

WST Subsea Tensioner
The WREN subsea tensioner is equipped with quick-release nuts and a unique patented seal, ensuring service life under high temperature and high pressure (1500 bar). It uses high-strength corrosion-resistant materials, enhancing the reliability of the equipment for deep-sea operations—enabling fast, efficient, and safe performance. To expand the application range of hydraulic bolt tensioners, WREN provides ultra-high pressure hoses with lengths ranging from 5 to 210 meters, and cable winders are included for extra-long hoses to facilitate use.
Contact Us
Technical Parameters
Model | Bolt size | Maximum working pressure | Maximum load | Force-Bearing Area | Maximum stroke | Weight | A | B | C | D | |
bar | kN | mm² | mm | kg | mm | mm | mm | mm | |||
WST1 | M20 | 3/4" | 1500 | 140 | 943 | 20 | ≈1.7 | 66 | 96.5 | 48 | 117 |
M22 | 7/8" | ||||||||||
WST2 | M24 | 1" | 1500 | 239 | 1596 | 30 | ≈3.7 | 82 | 127 | 60 | 147 |
M27 | |||||||||||
M30 | 1-1/8" | ||||||||||
WST3 | M33 | 1-1/4" | 1500 | 380 | 2533 | 30 | ≈6.0 | 97 | 137 | 77 | 163 |
M36 | 1-3/8" | ||||||||||
WST4 | M39 | 1-1/2" | 1500 | 551 | 3676 | 30 | ≈7.0 | 111 | 145.5 | 90 | 169.25 |
M42 | 1-5/8" | ||||||||||
WST5 | M45 | 1-3/4" | 1500 | 880 | 5868 | 30 | ≈11.2 | 136 | 158 | 114 | 189 |
M48 | 1-7/8" | ||||||||||
M52 | 2" | ||||||||||
WST6 | M56 | 2-1/4" | 1500 | 1564 | 10433 | 30 | ≈21.3 | 177 | 180.5 | 140 | 223 |
M60 | |||||||||||
M64 | 2-1/2" | ||||||||||
M72 | 2-3/4" | ||||||||||
WST7 | M76 | 3" | 1500 | 2576 | 17174 | 30 | ≈33.6 | 217 | 202 | 180 | 255.25 |
M80 | |||||||||||
M85 | 3-1/4" | ||||||||||
M90 | 3-1/2" | ||||||||||
