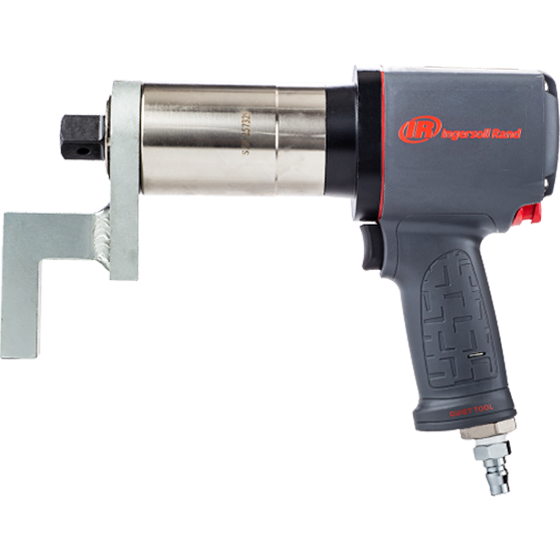

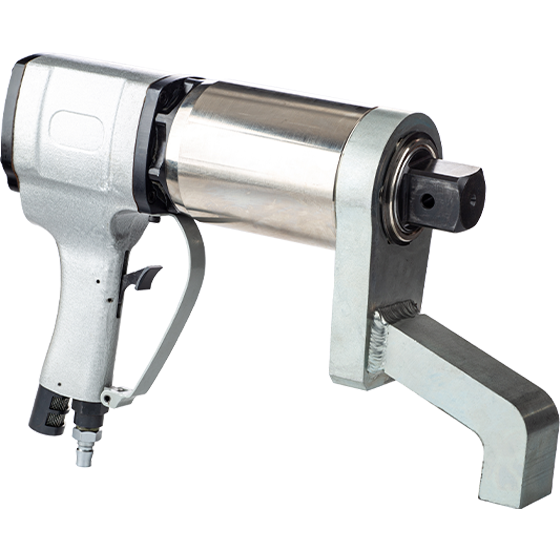

WPD Pneumatic Torque Wrench
The pneumatic torque wrench is used in the working conditions that require precise and large-scale loading and unloading. The precise high-speed gearbox design can obtain stable and strong continuous output torque, which is suitable for high-efficiency occasions.
Contact Us
Technical Parameters
Model | Square drive | Torque | Rotating speed | Weight | Noise |
N.m | rpm | kg | db | ||
WPD14 | 0.75 | 275~1350 | 8.5 | 4.8 | 80 |
WPD20 | 1 | 400~2000 | 6.3 | 5.9 | 80 |
WPD34 | 1 | 700~3400 | 4.8 | 7 | 85 |
WPD40 | 1 | 1200~4000 | 4.8 | 7.5 | 85 |
WPD80 | 1.5 | 2700~8000 | 4.2 | 12.2 | 85 |

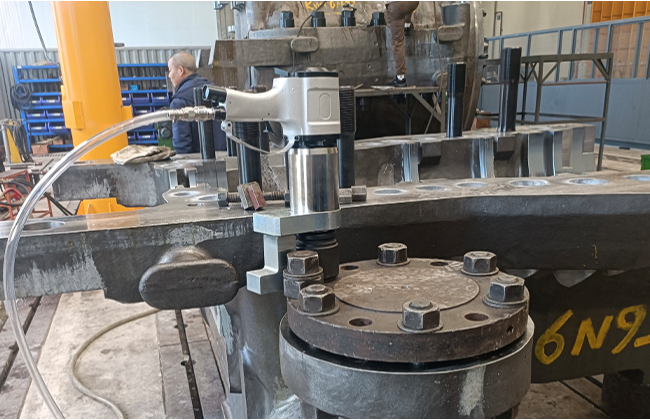

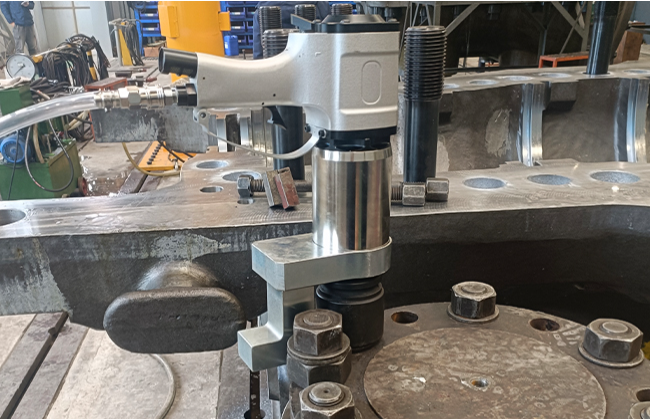

Operating Condition Examples

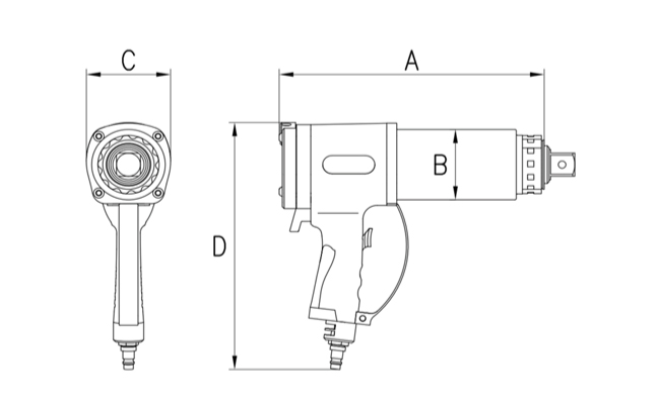

Size Chart
Model | Size(mm) | |||
A | B | C | D | |
WPD14 | 207 | 70 | 31.5 | 261 |
WPD20 | 201 | 70 | 34.5 | 261 |
WPD34 | 269 | 89 | 38.5 | 272 |
WPD40 | 289 | 81 | 38.5 | 272 |
WPD80 | 317 | 93 | 51 | 293 |
