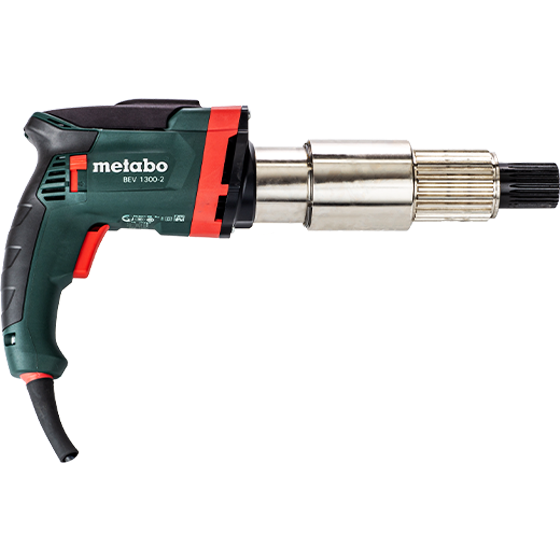

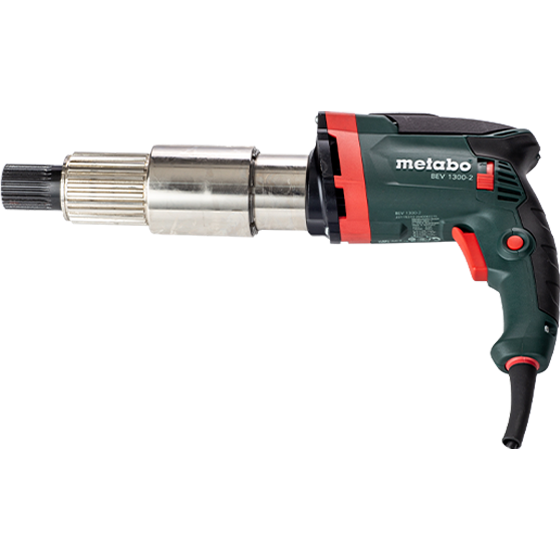

V-MED Electrical Torque Wrench
V-MED is a new generation of electric torque wrenches for bolt safety or removal in heavy duty industries where precision, power and safety are required. The product can preset the torque, the torque range can reach 8000N.m, providing continuous, stable and controllable torque output.
Contact Us
Technical Parameters
Model | Square drive | Torque | Rotating speed | Weight | Noise |
N.m | rpm | kg | db | ||
V-MED14 | 3/4" | 140~1400 | 7.7 | 4.9 | 80 |
V-MED20 | 1" | 200~2000 | 5 | 5.9 | 80 |
V-MED40 | 1" | 400~4000 | 3 | 6.2 | 80 |
V-MED60 | 1.1/2" | 600~6000 | 2.5 | 9 | 80 |
V-MED80 | 1.1/2" | 800~8000 | 2 | 11.7 | 80 |

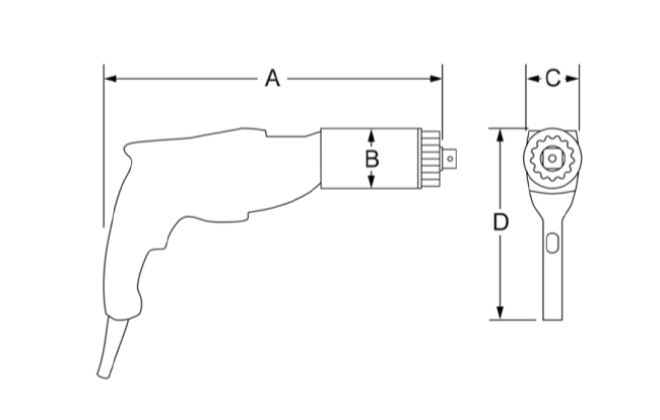

Size Chart
Model | Size（mm） | |||
A | B | C | D | |
V-MED14 | 438 | 63 | 73 | 203 |
V-MED20 | 280 | 69 | 69 | 203 |
V-MED40 | 310 | 81 | 81 | 203 |
V-MED60 | 340 | 95 | 95 | 203 |
V-MED80 | 500 | 102 | 73 | 203 |
