TYS10 Series Calibrator Hydraulic Torque Wrench

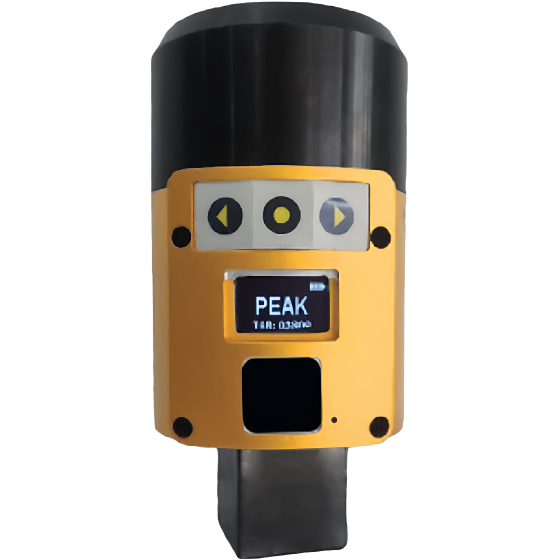

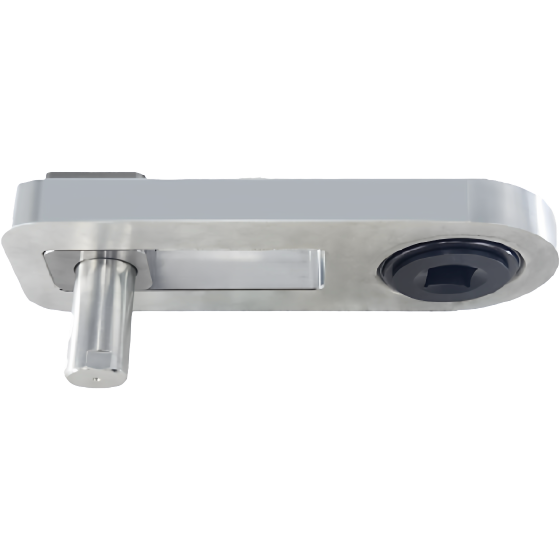

TYS10 Calibrator Hydraulic Torque Wrench
The calibrated results can be viewed, recorded, and output in real time (support XLS, CSV, PDF format, support Bluetooth connection)
Precise calibration of output torque
Accurate testing, stable performance, rich functions, and easy operation
It can meet the torque wrench with torque value from 800Nm-20000Nm. Sensor accuracy of ±0.5%
Contact Us
Calibrator Hydraulic Torque Wrench
Calibrator Hydraulic Torque Wrench
Calibrator Hydraulic Torque Wrench
Calibrator Hydraulic Torque Wrench
Calibrator Hydraulic Torque Wrench
Calibrator Hydraulic Torque Wrench
Technical Parameters
Technical Parameters

Model

Square Drive

Calibrating Range(Nm)

Size(mm)

mm

Min

Max

A

B

C

TYS10-002

1.1/2"

800

10000

189

64

102

TYS10-003

2.1/2"

800

20000

221

64

105
