S Series Hydraulic Torque Wrench Socket

S Hydraulic Torque Wrench Socket

Contact Us

Hydraulic Torque Wrench Socket

Hydraulic Torque Wrench Socket

Hydraulic Torque Wrench Socket

Hydraulic Torque Wrench Socket

Technical Parameters

Technical Parameters

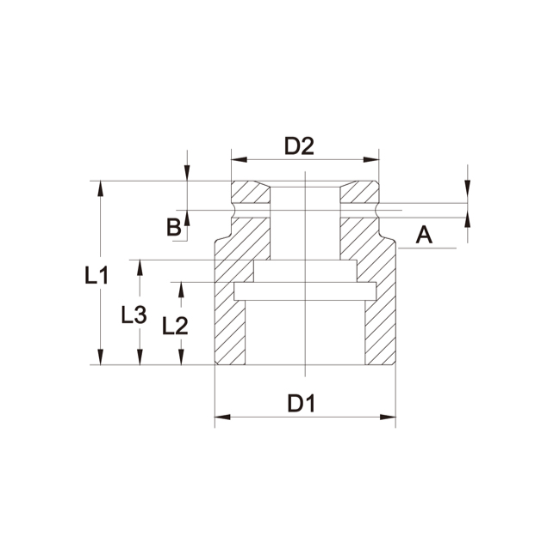

Thread specifications		Square drive						3/4"						1"						1-1/2"						2-1/2"
		A:						Φ6.3						Φ8						Φ8						Φ10
		B:						10						14						16						38

		3/4"						1"						1.1/2"						2.1/2"						3.1/2"
		07,1IBT						3IBT						5,8,10IBT						15,20,25,35,50IBT						60IBT
diameter	Opposite	Model	L1	L2	L3	D1	D2	Model	L1	L2	L3	D1	D2	Model	L1	L2	L3	D1	D2	Model	L1	L2	L3	D1	D2	Model	L1	L2	L3	D1	D2
M16	24	S24	54	32	32	40	40
M18	27	S27	54	32	32	42	42
M20	30	S30	54	33	33	46	44	S30	59	32	32	54	54
M22	34	S34	54	33	33	52	44	S34	59	59	32	58	58
M24	36	S36	57	33	33	54	44	S36	62	32	32	59	59	S36	85	44	44	74	74
M27	41	S41	58	33	33	60	44	S41	65	38	38	67	54	S41	85	44	44	74	74
M30	46	S46	63	38	38	66	44	S46	65	38	38	74	54	S46	85	44	44	74	74
M33	50	S50	65	40	40	71	44	S50	70	43	43	79	60	S50	90	45	45	79	79
M36	55	S55	70	45	45	77	54	S55	80	42	52	84	60	S55	90	45	45	84	84	S55	100	57	57	86	114
M39	60							S60	85	45	57	89	60	S60	100	45	57	94	75	S60	100	52	52	119	119
M42	65							S65	85	45	57	98	70	S65	100	45	57	98	80	S65	100	52	52	119	119
M45	70							S70	90	50	62	104	70	S70	105	50	62	104	80	S70	120	67	67	128	128
M48	75							S75	95	50	65	108	70	S75	110	50	65	118	85	S75	120	67	67	128	128
M52	80													S80	115	55	72	118	90	S80	130	71	71	128	129
M56	85													S85	125	60	77	128	90	S85	130	71	71	129	139
M60	90													S90	125	60	77	139	90	S90	140	61	73	139	139
M64	95													S95	130	65	82	139	90	S95	140	66	73	139	130
M68	100													S100	135	70	87	144	90	S100	140	71	81	148	130	S100	155	71	81	152	165
M72	105													S105	135	70	87	149	90	S105	150	77	89	156	130	S105	165	77	89	170	170
M76	110													S110	135	70	87	158	90	S110	150	72	90	158	130	S110	165	72	90	178	170
M80	115													S115	135	70	87	159	95	S115	150	82	98	168	130	S115	165	82	98	786	186
M85	120													S120	135	70	87	168	95	S120	150	82	98	178	130	S120	165	82	98	194	195
M90	130													S130	155	93	105	189	95	S130	170	93	114	189	130	S130	185	93	114	208	195
M95	135																			S135	170	93	114	198	130	S135	185	93	114	212	195
M100	145																			S145	170	98	122	210	152	S145	185	98	122	222	195
M105	150																			S150	190	100	140	216	152	S150	205	100	140	220	220
M110	155																			S155	190	100	140	229	152	S155	205	100	140	220	220
M115	165																			S165	190	100	140	241	152	S165	205	100	140	240	220
