P High Preasure Hydraulic Hand Pump
The P series is a portable high-pressure manual pump specially designed for supplying pressure to hydraulic cylinders, hydraulic bolt tensioners and hydraulic torque wrenches. Its output pressure is available in three main categories: 70 MPa, 160 MPa and 280 MPa. In addition, fuel tanks of various sizes can be customized to meet the requirements of different equipment. The WREN brand provides global after-sales service and has a complete supporting supply capacity, with certifications from TÜV Rheinland Germany and the EU CE.
Contact Us
Technical Parameters
Model | working pressure（Mpa) | One Stroke Oil(mL) | Fuel tank capacity | Available Oil | Handle Force | ||
Low pressure | High pressure | Low pressure | High pressure | L | L | N | |
P392 | 2.5 | 70 | 32 | 2.5 | 1.67 | 1.44 | 300 |
P80 | 2.5 | 70 | 32 | 2.5 | 2.25 | 1.98 | 300 |
P160 | 2.5 | 70 | 32 | 2.5 | 3.58 | 3.24 | 300 |
16P392 | 1.5 | 160 | 32 | 2.5 | 1.67 | 1.44 | 350 |
16P80 | 1.5 | 160 | 32 | 2.5 | 2.25 | 1.98 | 350 |
16P160 | 1.5 | 160 | 32 | 2.5 | 3.58 | 3.24 | 350 |
28P80 | 2 | 280 | 32 | 0.9 | 2.26 | 1.98 | 350 |
28P160 | 2 | 280 | 32 | 0.9 | 3.8 | 3.24 | 350 |

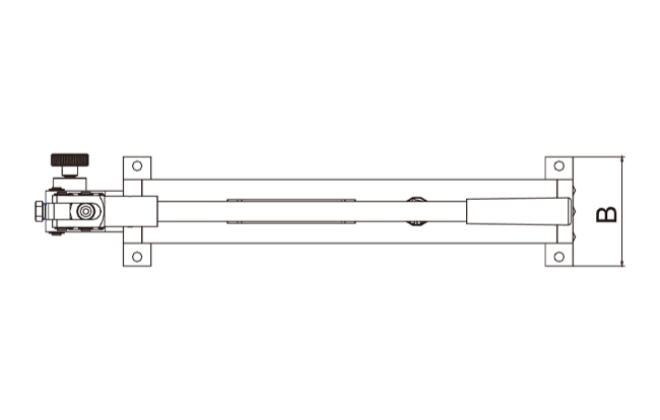

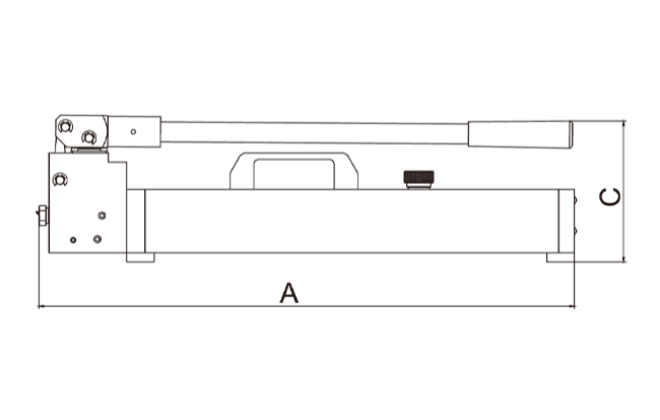

Size Chart
Model | Size(mm) | Output interface | Pressure gauge interface | Weight | ||
A | B | C | kg | |||
P392 | 578 | 120 | 161 | NPT3/8" | NPT1/4" | 6.3 |
P80 | 590 | 120 | 161 | NPT3/8" | NPT1/4" | 8 |
P160 | 578 | 140 | 181 | NPT3/8" | NPT1/4" | 10 |
16P392 | 579 | 120 | 162 | 1/4"BSP | 1/2"BSP | 6.5 |
16P80 | 579 | 120 | 162 | 1/4"BSP | 1/2"BSP | 8.5 |
16P160 | 636 | 140 | 162 | 1/4"BSP | 1/2"BSP | 10.5 |
28P80 | ||||||
28P160 | ||||||
