LP3-Z4 Series Hydraulic Torque Wrench Electric Pump
LP3-Z4 Hydraulic Torque Wrench Electric Pump
Precision Control: Powered by a high-performance servo motor, ensuring exact command over pump speed, torque, and positioning.
Enhanced Efficiency: Simultaneously operates two torque wrenches as standard, with an optional 4-synchronization upgrade for maximum productivity.
Versatile Performance: Features electric three-stage flow and a flexible pressure range of 70–700 bar to meet diverse application needs.
Built for Endurance: Equipped with a built-in oil cooler to maintain optimal temperatures during non-stop operation.
Global Certification: Backed by TÜV Rheinland and CE certifications, guaranteeing international safety and quality standards.
Contact Us
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Technical Parameters

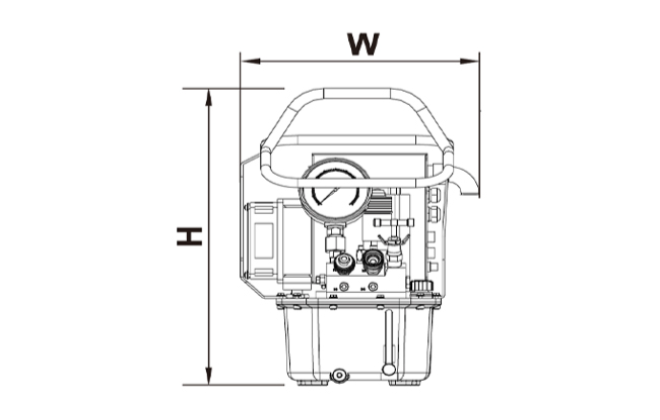

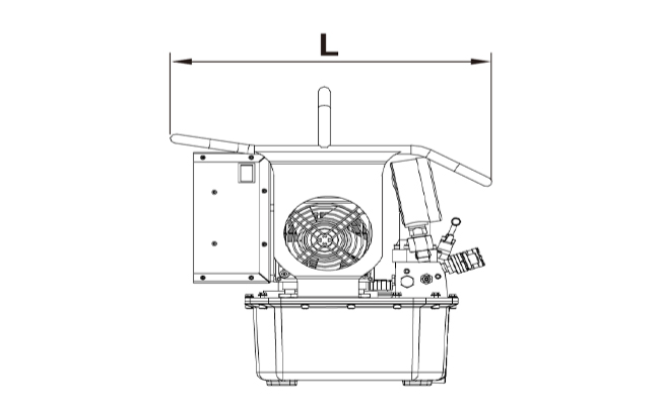

Size Chart
Technical Parameters

Model

LP3-Z4-2

LP3N-4

Working pressure

70MPa

70MPa

Drive mode

Electric

Electric

Source of power

220V/50Hz

220V/50Hz

Power

1.1kW

1.1kW

Tank capacity

5.5L

5.5L

Flow(low-mid-High)

7-1.6-0.8L/min

7-1.6-0.8L/min

Cooler

Yes

Yes

Weight

23kg

25kg

Oil outlet

4×1/4"NPT

8×1/4"NPT

LxWxH

419×329×464mm

425×329×464mm


Size Chart
