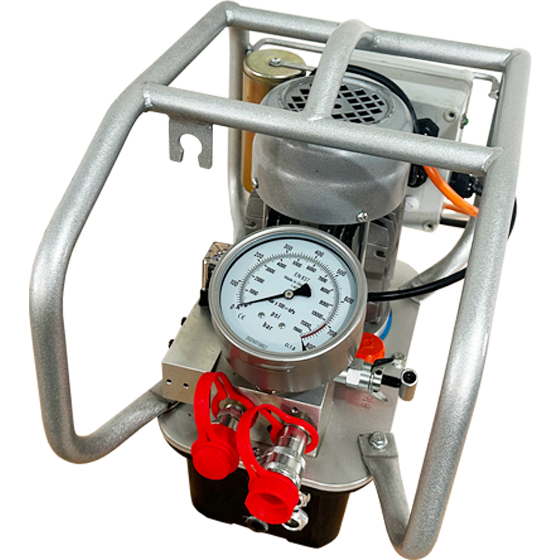

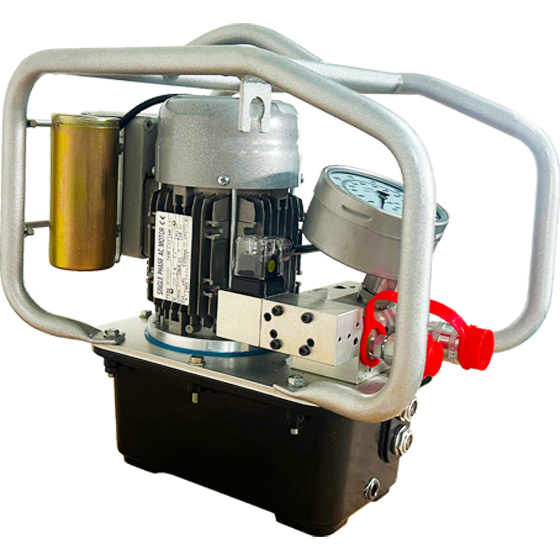

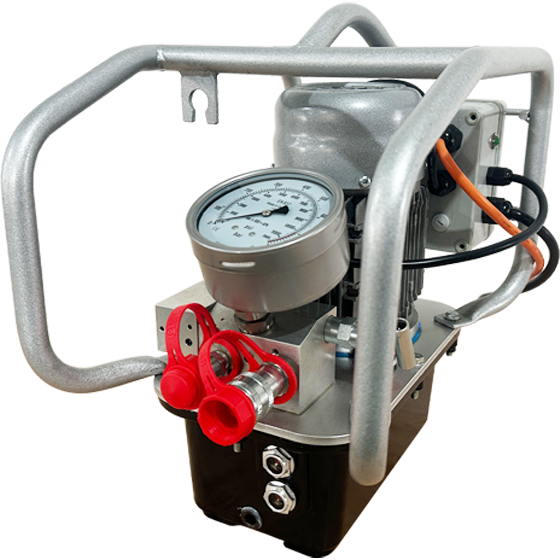

LP3-Mini Hydraulic Torque Wrench Electric Pump
The LP3‑mini hydraulic torque wrench pump is developed with lightweight optimization on the basis of the proven LP3 series. While consistently guaranteeing stable working efficiency, it achieves a substantial reduction in overall product weight. This significant weight saving brings greater flexibility and convenient mobility for various outdoor field‑working scenarios. Particularly for wind power sector projects, it delivers an ideal upgraded solution covering equipment installation, routine commissioning and comprehensive maintenance tasks.
Lightweight design with a total weight of only 18KG
Compact automatic three stage design.
Infinitely variable pressure adjustment between 70~700 bar.
Optional components(FP4), can operate four wrenches at the same time
Contact Us
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
Technical Parameters

Model

LP3-mini

Working pressure

70MPa

Drive mode

Electric

Source of power

220V/50Hz

Power

0.65KW

Tank capacity

1.6L

Flow(low-mid-High)

3-1-0.4L/min

Cooler

3-1-0.4L/min

Weight

18kg

Oil outlet

4×1/4"NPT

LxWxH

362×255×366mm

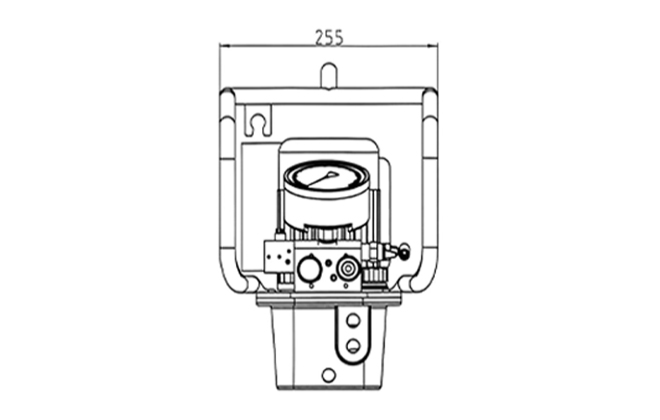

Size Chart
Hydraulic Torque Wrench Electric Pump
Hydraulic Torque Wrench Electric Pump
