LP3 Series Hydraulic Torque Wrench Electric Pump

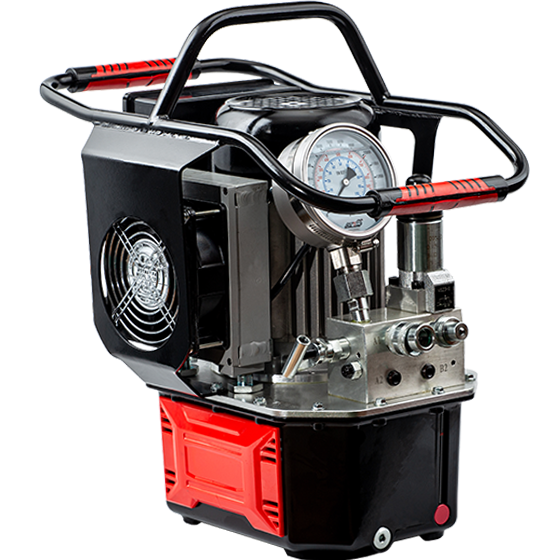

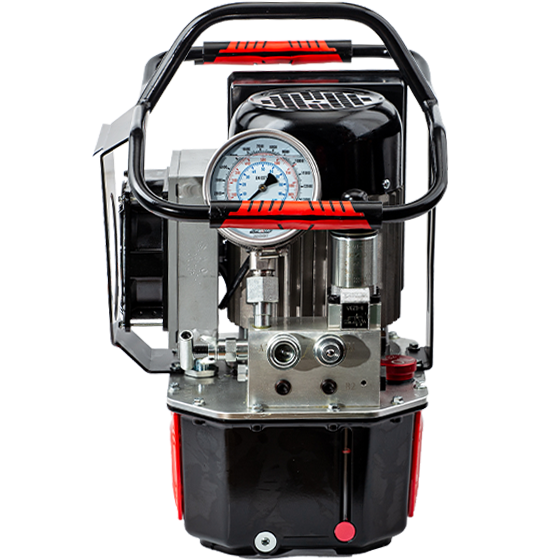

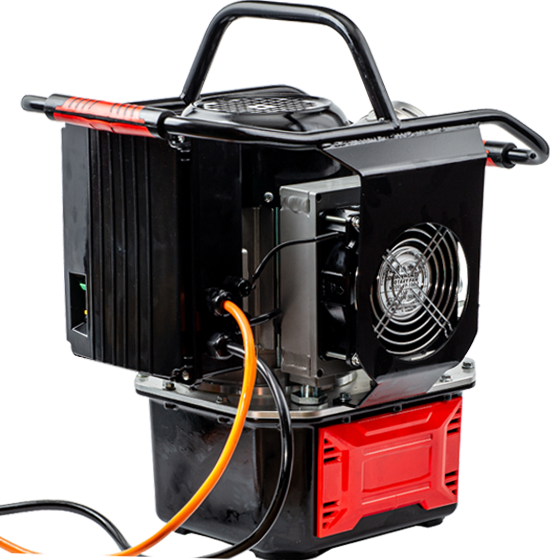

LP3 Hydraulic Torque Wrench Electric Pump

Compact automatic three stage design, Applicable on two wrenches simultaneously

Aluminum oil tank with gauge

Infinitely variable pressure adjustment between 70～ 700 bar

With the high efficiency radiator the pump can work 24 hours continuously

Can change the motor to fit the different voltage

Optional components(FP4), can operate four wrenches at the same time

Contact Us

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Hydraulic Torque Wrench Electric Pump

Technical Parameters

Technical Parameters

Model	LP3-2	LP3-4
Working pressure	70MPa	70MPa
Drive mode	Electric	Electric
Source of power	220V/50Hz	220V/50Hz
Power	1.1kW	1.1kW
Tank capacity	5.5L	5.5L
Flow(low-mid-High)	7-1.6-0.8L/min	7-1.6-0.8L/min
Cooler	Yes	Yes
Weight	25kg	27kg
Oil outlet	4×1/4"NPT	8×1/4"NPT
LxWxH	445×304×426mm	461×304×426mm

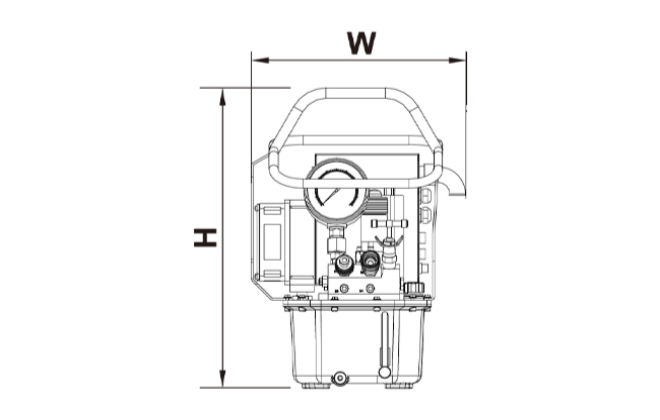

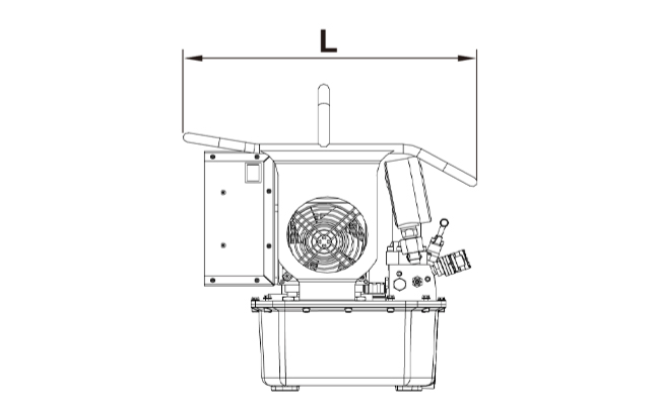

Size Chart
