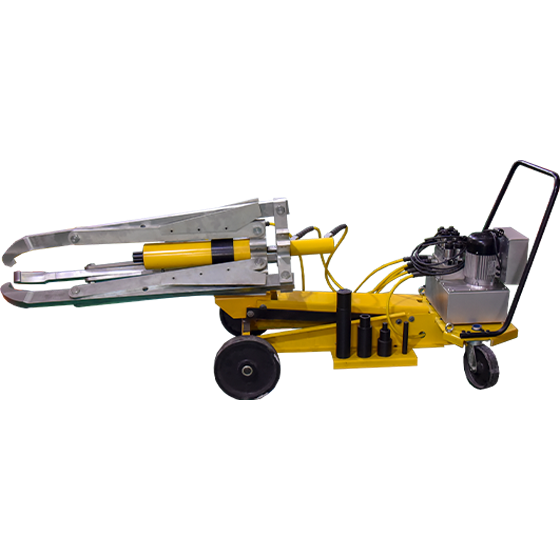

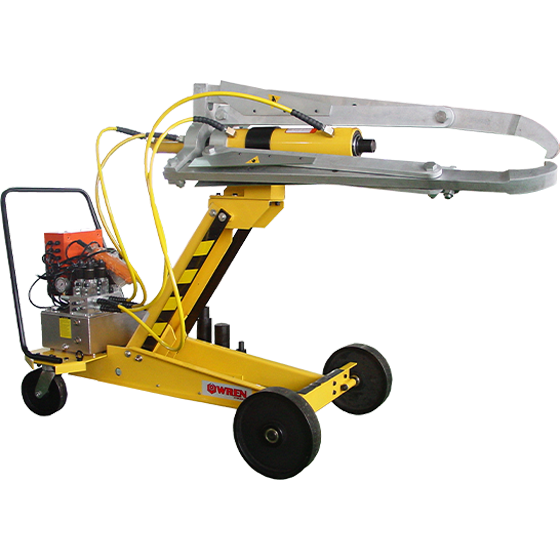

LA Automatic Vehicle Hydraulic Puller
The LA series fully automatic puller is made of high-strength alloy steel and adopts a fully automatic hydraulic design. It enables automatic hydraulic lifting, automatic workpiece clamping and automatic pulling. The double-acting hydraulic cylinder design is suitable for the disassembly of large shaft and hole workpieces.
Contact Us
Technical Parameters
Model | LA50L337 | LA100L337 |
Cylinder Output Force（t） | 50 | 100 |
Minimum opening（mm） | 64 | 120 |
Puling depth of Min.open（mm） | 651 | 490 |
Maximum opening（mm） | 1150 | 1150 |
Depth at maximum opening（mm） | 559 | 340 |
Overall length（mm） | 2590 | 2610 |
Regulation of puller center height（mm） | 450~1120 | 590~1155 |
Cylinder stroke（mm） | 337 | 337 |
Power Source (Single-Phase) | 220V/380V | 220V/380V |
Size Chart
Model | LA50L337 | LA100L337 |
L（mm） | 2590 | 2610 |
W（mm） | 1264 | 1264 |
H1（mm） | 1829 | 1887 |
H2（mm） | 1114 | 1155 |
H3（mm） | 1002 | 1002 |
