KLW4010EXII Series Explosion-proof Hydraulic Wrench Pump

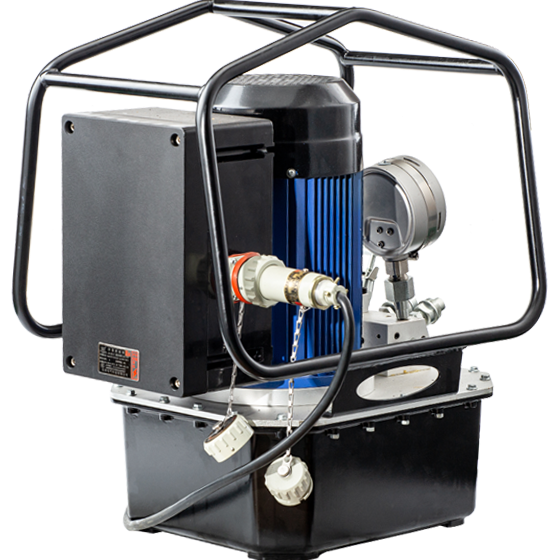

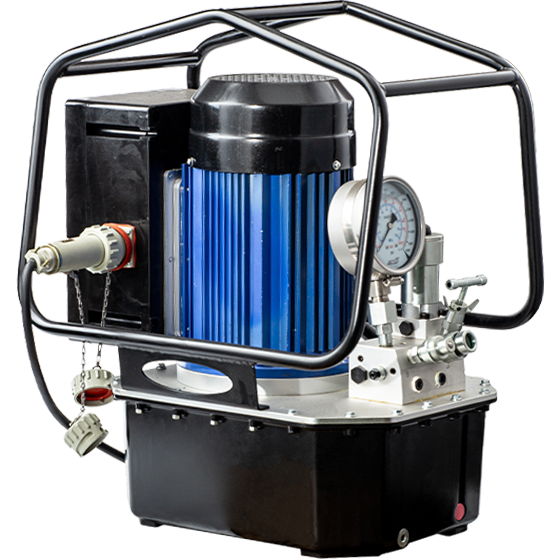

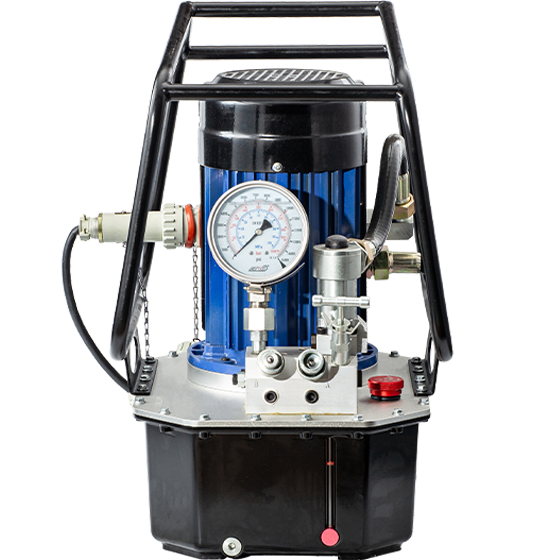

KLW4010EXII Explosion-proof Hydraulic Wrench Pump

Explosion-proof class EXDII.BT4, protection class IP55

Optionally connected to multiple torque wrenches for operation

Comes with oil cooler for continuous operation

Outer protection steel frame, Φ100 pressure gauge, aluminum oil tank with oil level indicator, 70-700bar adjustable pressure

Contact Us

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump

Technical Parameters

Technical Parameters

Model	KLW4010AEX	KLW4010AEX-FP4
Working pressure	70MPa	70MPa
Drive mode	Electric	Electric
Source of power	220V/50Hz	220V/50Hz
Power	1.5kW	1.5kW
Tank capacity	8L	8L
Flow(low-mid-High)	7-1.6-0.8L/min	7-1.6-0.8L/min
Weight	46kg	48kg
Oil outlet	4×1/4"NPT	8×1/4"NPT
LxWxH	455×336×533mm	455×336×553mm

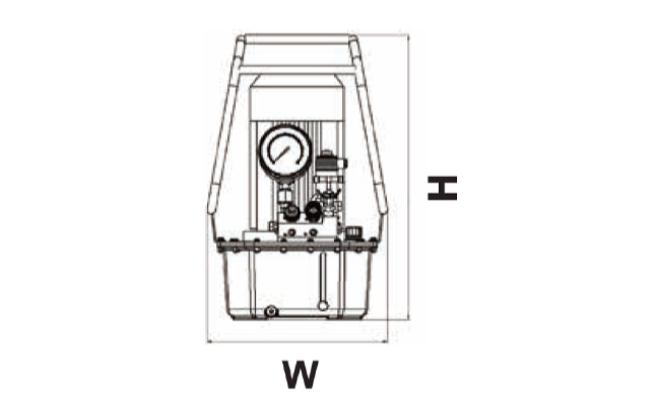

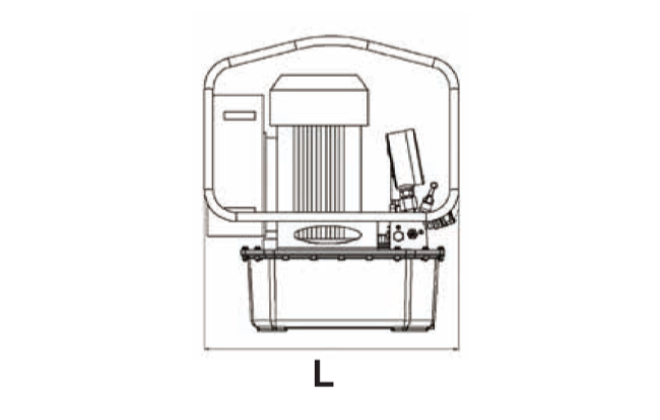

Size Chart

Explosion-proof Hydraulic Wrench Pump

Explosion-proof Hydraulic Wrench Pump
