IBT Series Square Drive Hydraulic Torque Wrench

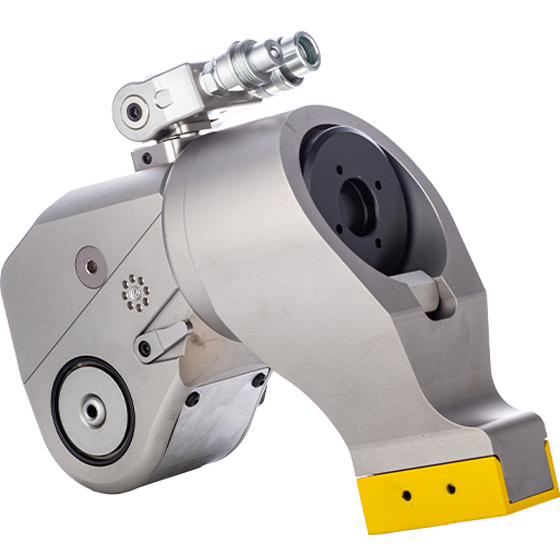

IBT Square Drive Hydraulic Torque Wrench

The IBT series is a professional-grade hydraulic torque wrench that WREN mainly markets internationally. Its raw material is aerospace-grade aluminum-titanium alloy which makes the wrench light and high intense. Notably, the IBT series offers 12 standard models with torque ranges from 112 N.m to 98900 N.m, featuring comprehensive model coverage and a wide bolt compatibility range.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

Maximum working pressure: 70 MPa, with an accuracy of ±3%.

Covering 12 models with torque ranges from 112 to 98,900 N·m, offering the most complete model lineup and the widest bolt coverage among comparable products.

Equipped with a square drive for connecting to high-strength sockets, it features broad bolt compatibility.

Trigger-style locking mechanism allows the reaction arm to be positioned against any suitable support point.

Technical Parameters

Operating Condition Examples

Size Chart

Optional Accessories

Technical Parameters

Model

07IBT

1IBT

3IBT

5IBT

8IBT

10IBT

15IBT

20IBT

25IBT

35IBT

50IBT

60IBT

Torque(N.m)

112~1120

183~1837

451~4512

752~7528

1078~10780

1551~15516

2019~20194

2666~26664

3472~34725

4866~48666

7200~72000

9890~98900

Bolt Size(M)

14~30

16~36

22~48

27~56

30~64

36~72

39~80

42~90

48~100

64~120

72~125

80~130

Weight(Kg)

1.8

2.5

26.5

120

Square Drive

3/4"

1-1/2"

2-1/2"

3-1/2"

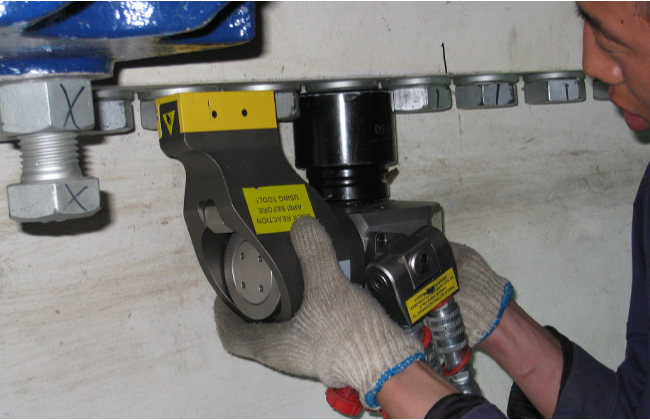

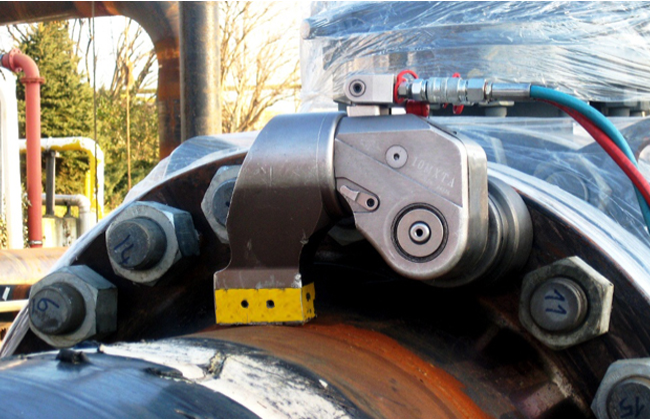

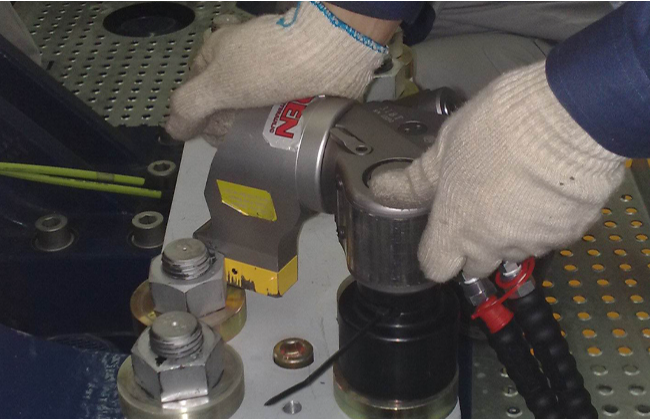

Operating Condition Examples

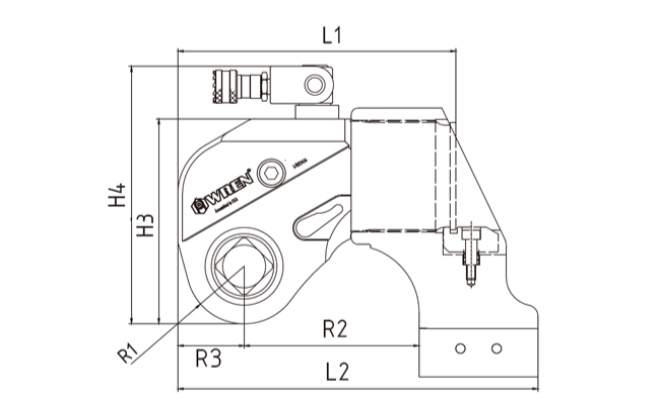

Size Chart

Model	L1	L2	H1	H2	H3	H4	R	R1	R2	R3
07IBT	110.8	139.3	42	65.8	76.2	108.1	75	20.5	68.8	25
1IBT	144	174	50	72	95.5	131	91.5	26	85.5	29
3IBT	178	229	68	95	127	176.5	123.5	34	114	40
5IBT	210.5	270.5	80	123	149	199	140	39	138	46.5
8IBT	222	295	90	134	167	217	165	47	155	47
10IBT	245.5	318.8	100	142	182	232	178	51	155.3	58.5
15IBT	292.8	361.3	112	167.4	206	252.4	188.5	56	177.7	67.1
20IBT	307.5	384.3	120	183	220	270	213	59	186	71
25IBT	323	402	137	200	247	297	228	66	199.8	72
35IBT	372.5	496.5	153	216	282	332	243.5	77	241.4	89.5
50IBT	400	516	160	223	290.5	341	258	81	258.5	97.5
60IBT	453.3	573.4	180	256	336	386.6	279	95	284.9	114.5

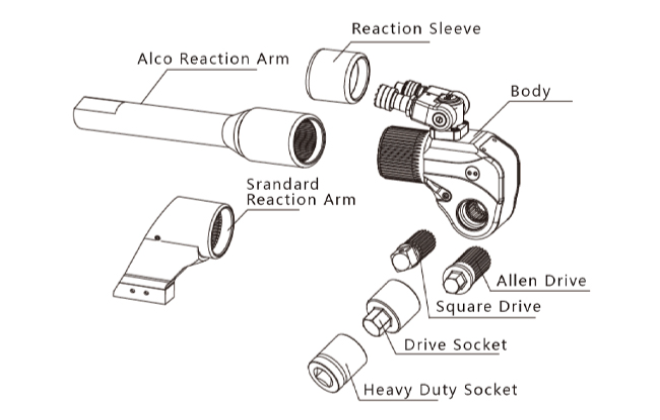

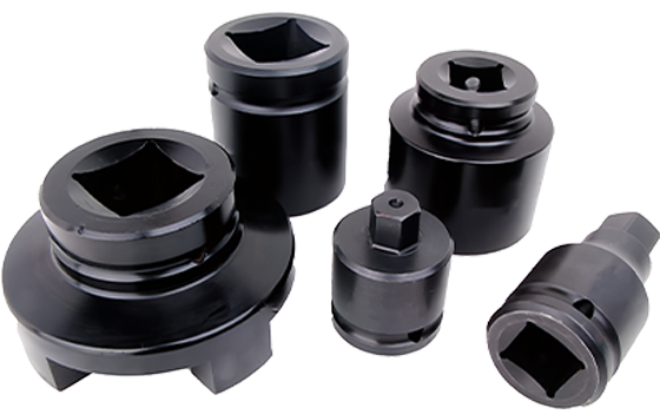

Optional Accessories

If you need to customize a special reaction arm, socket, or other supporting components, please feel free to contact us!
