Ultra-High Pressure Tensioner Pump
WREN
HMP-ZN Series Smart Tensioner Pump
HMP-ZN Smart Tensioner Pump
7-inch industrial-grade color touch screen, highly responsive and reliable. Based on the selected bolt tensioner, the target tension value can be set, and the working pressure is calculated automatically. During pressurization, tension data is displayed in real time, with optional pressure curve visualization.
0~2000 bar pressure regulation, and corresponding tensile value display,Background big data analysis storage to extract data. Manual and automatic modes can be switched
Pressure adjustment range from 700 to 2000 bar, with corresponding tension values displayed simultaneously.
Project-based parameter settings enable classified storage of bolt tensioning records.
Power supply voltage monitoring function, real-time monitoring of power supply voltage frequency, alarm when the Tensioner Pump does not meet the working requirements
Motor overheating protection, system alarm shutdown.
Electric two-stage flow, high efficiency and stability. Optional valve group connection.
Efficient heat dissipation when the built-in cooling system is running.
Background big data analysis storage to extract data. Manual and automatic modes can be switched.
Contact Us
Smart Tensioner Pump
Smart Tensioner Pump
Smart Tensioner Pump
Smart Tensioner Pump
Smart Tensioner Pump
Smart Tensioner Pump
Smart Tensioner Pump
Smart Tensioner Pump
Technical Parameters
Size Chart
Technical Parameters

Model

HMP-ZN

Working pressure

200MPa

Drive mode

Electric

Source of power

220V/50Hz

Power

1.5kW

Tank capacity

8L

Flow(low-mid-High)

4-0.5L/min

Cooler

Yes

Weight

32kg

Oil outlet

G1/4

LxWxH

456×374×514mm

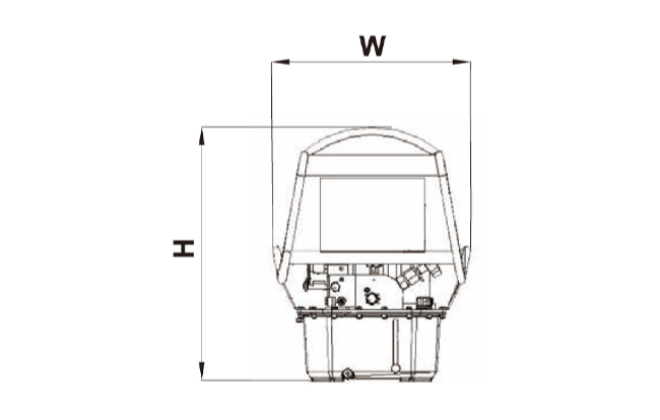

Size Chart
Smart Tensioner Pump
Smart Tensioner Pump
