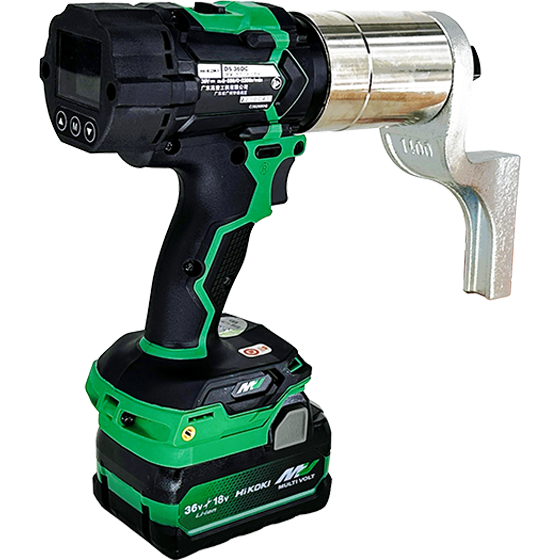

H-WEDCX Battery Torque Wrench
With a new torque display and buttons, this newly designed WEDCX battery torque wrench offers unmatched power, versatility and reliability. H-WEDCX Series allows users to choose the target torque more conveniently.
Contact Us
Technical Parameters
Model | Square drive | Torque | Rotating speed | Weight |
N.m | rpm | kg | ||
H-WED07CX | 3/4" | 100~700 | 18 | 3.5 |
H-WED14CX | 3/4" | 300~1400 | 6 | 3.7 |
H-WED20CX | 1" | 400~2000 | 6 | 4 |
H-WED40CX | 1" | 800~4000 | 3.5 | 6 |
H-WED70CX | 1.1/2" | 1350~7000 | 2.4 | 8.8 |
H-WED80CX | 1.1/2" | 1500~8000 | 1.2 | 10 |

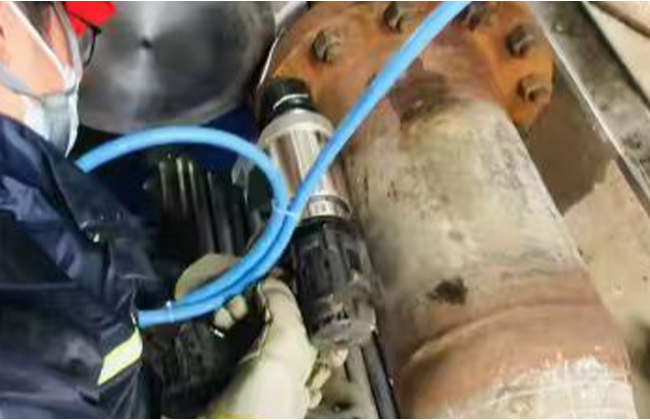

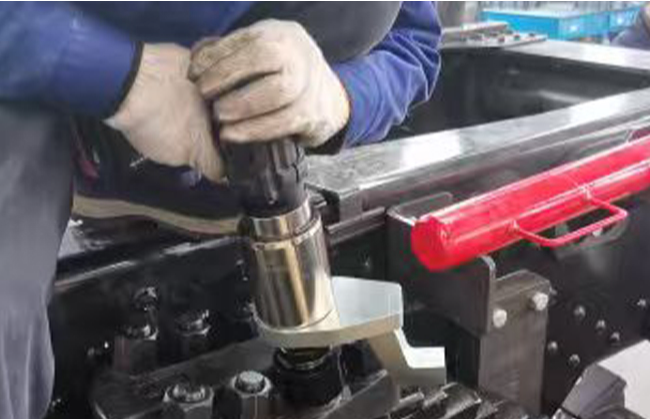

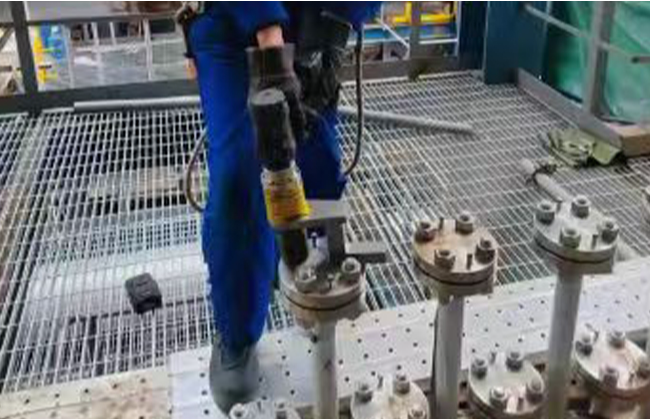

Operating Condition Examples

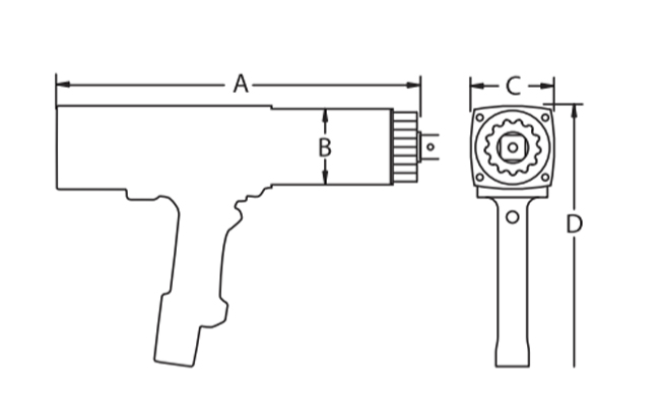

Size Chart
Model | Size（mm） | |||
A | B | C | D | |
H-WED07CX | 235 | 63 | 67 | 262 |
H-WED14CX | 246 | 63 | 67 | 262 |
H-WED20CX | 244 | 63 | 69 | 262 |
H-WED40CX | 285 | 69 | 81 | 266 |
H-WED70CX | 295 | 95 | 95 | 272 |
H-WED80CX | 311 | 102 | 102 | 275 |
