Low Profile Hydraulic Torque Wrench

H Series Low Profile Hydraulic Torque Wrench

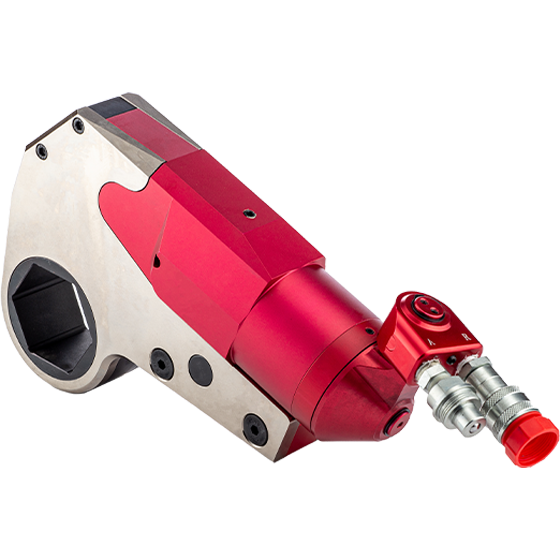

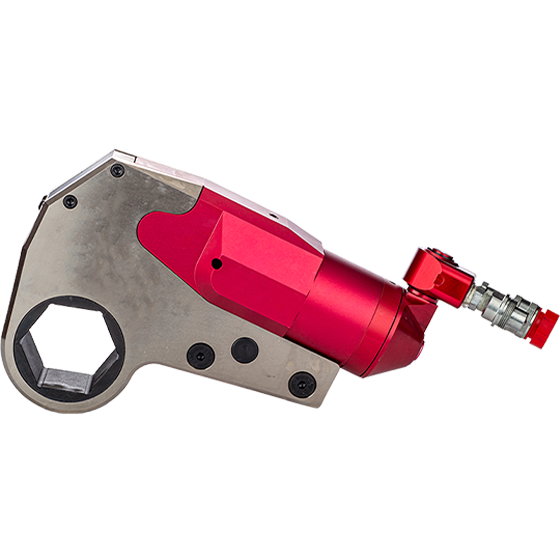

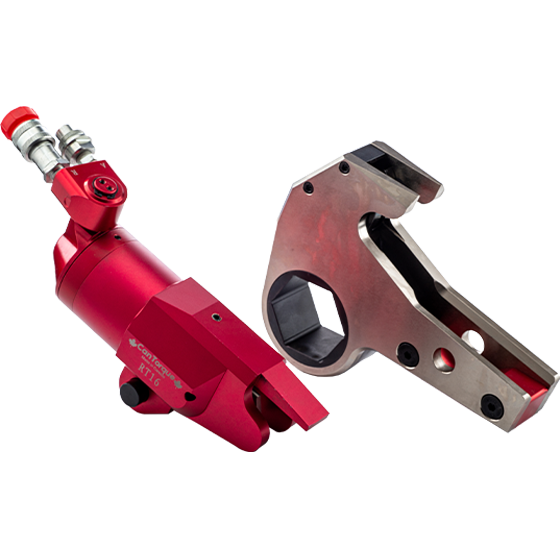

H Low Profile Hydraulic Torque Wrench

Hollow design, acting directly on the nut for higher precision and lighter weight.The H series hollow wrench adopts a 360°×360° omnidirectional oil pipe interface, enabling more convenient operation in narrow working spaces.Constructed from aluminum-titanium alloy, the fuselage features high strength and enhanced durability.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

Technical Parameters

Operating Condition Examples

Size Chart

Optional Accessories

Technical Parameters

Model	Torque	Bolt Size	Power Head Weight	Cassette Weight	Size(mm)
Model	N.m	m	kg	kg	L	H1	H2	W1	W2	A
H27	262~2625	19~46	1.76	1.06	193	125	97	32	51	10~15
H27	306~3068	50~60	1.76	1.06	193	136	108	32	51	10~11
H54	537~5372	27~65	2.99	2.04	250	158	125	41	64	11~19
H54	603~6037	70~80	2.99	2.04	250	169	136	41	64	11.7~19
H120	1173~11737	50~80	6.44	3.58	310	189	157	52	78	15~15.2
H120	1434~14349	85~105	6.44	3.58	310	214	182	52	78	16~22
H210	2121~21216	70~100	12.14	6.12	378	223	191	64	97	8~21
H210	2312~23124	105~115	12.14	6.12	378	236	204	64	97	18~24
H430	4379~43792	80~117	29.75	16.42	405*	291*	242*	83	93	25~31*
H430	4848~48481	120~175	29.75	16.42	425*	309*	260*	83	93	25~34*

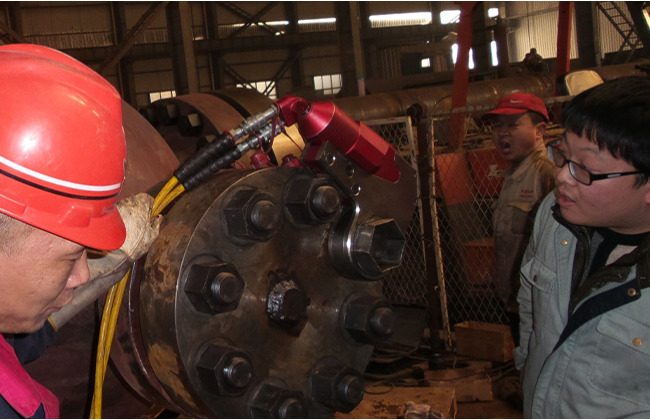

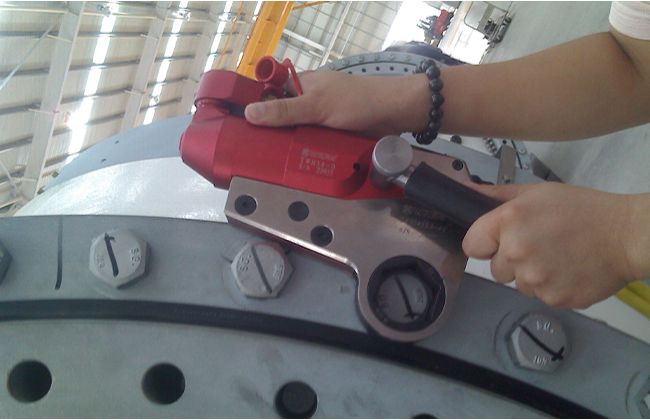

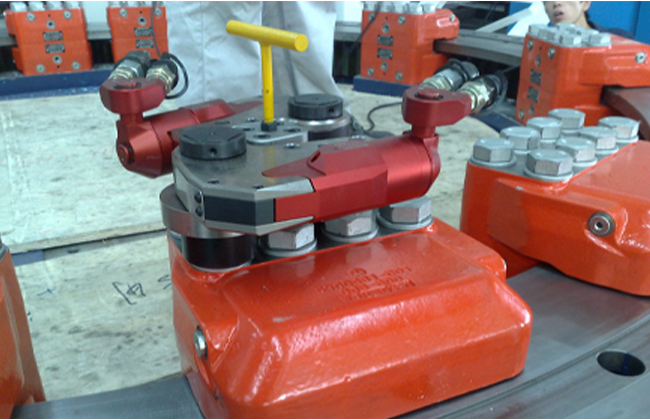

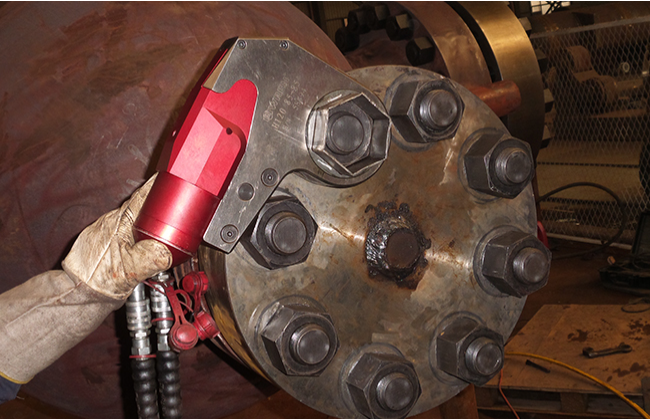

Operating Condition Examples

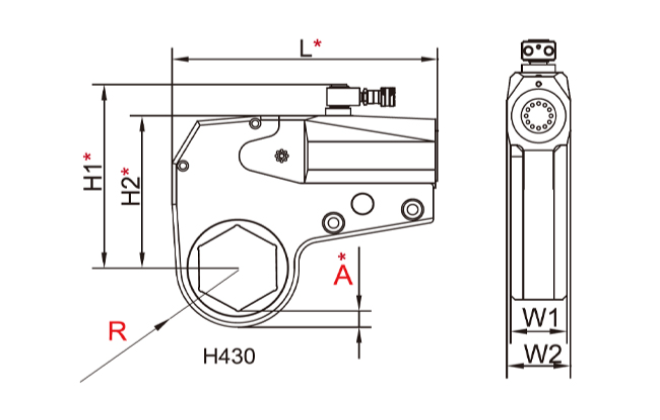

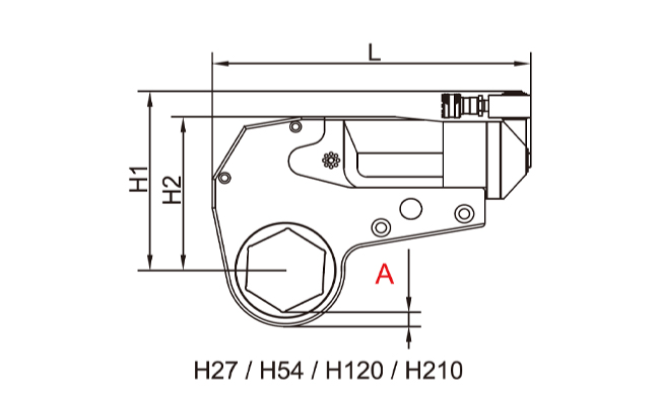

Size Chart

H27				H54				H120				H210				H430
Model	R	A	Max Torque	Model	R	A	Max Torque	Model	R	A	Max Torque	Model	R	A	Max Torque	Model	R	A	Max Torque
Model	（mm）	（mm）	N.m	Model	（mm）	（mm）	N.m	Model	（mm）	（mm）	N.m	Model	（mm）	（mm）	N.m	Model	（mm）	（mm）	N.m
H27-19	26	15	2625	H54-27	36	19	5372	H120-50	44	15	11737	H210-70	59	18	21216	H430-80	72	25	43792
H27-22	26	14	2625	H54-30	35	17	5372	H120-55	47	15	11737	H210-75	62	18	21216	H430-85	78	28	43792
H27-27	26	11	2625	H54-32	35	16	5372	H120-60	50	15	11737	H210-80	65	18	21216	H430-90	78	25	43792
H27-30	28	11	2625	H54-34	35	16	5372	H120-65	53	15	11737	H210-85	68	21	21216	H430-95	84	28	43792
H27-32	28	10	2625	H54-36	35	14	5372	H120-70	56	15	11737	H210-90	71	18	21216	H430-100	84	26	43792
H27-34	31	11	2328	H54-41	35	11	5372	H120-75	58	15	11737	H210-95	77	21	21216	H430-105	90	28	43792
H27-36	31	10	2625	H54-46	37	11	5858	H120-80	61	15	11737	H210-100	77	18	21216	H430-110	94	31	43792
H27-41	34	10	2625	H54-50	41	12	5372	H120-85	66	16	14349	H210-105	79	18	23124	H430-115	94	28	43792
H27-46	37	10	2625	H54-55	44	13	5372	H120-90	69	16	14349	H210-110	87	24	23124	H430-117	94	28	43792
H27-50	40	11	3068	H54-60	47	12	5372	H120-95	71	16	14349	H210-115	87	21	23124	H430-120	101	31	48481
H27-55	42	11	3068	H54-65	50	12	5372	H120-100	77	19	14349					H430-125	101	28	48481
H27-60	45	10	3068	H54-70	52	12	6037	H120-105	77	16	14349					H430-130	101	25	48481
				H54-75	56	12	6037									H430-135	105	26	48481
				H54-80	58	12	6037									H430-140	110	29	48481
																H430-145	110	26	48481
																H430-150	115	29	48481
																H430-155	115	26	48481
																H430-160	121	29	48481
																H430-165	121	26	48481
																H430-170	128	30	48481
																H430-175	128	27	48481

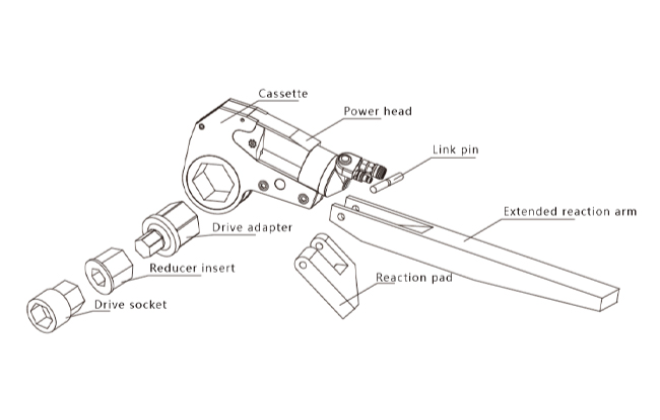

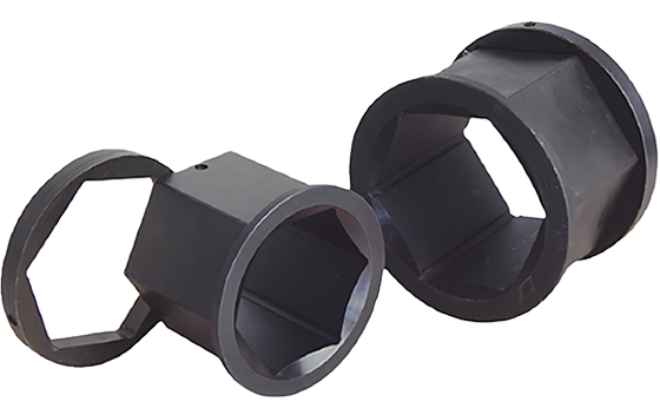

Optional Accessories

If you need to customize a special reaction arm, reducer, or other supporting components, please feel free to contact us!
