WREN Digital Socket
WREN digital socket is a combination of WREN torque sensor technology
and socket, which can reflect the actual torque of the bolt in real time
during the bolt tightening process. Its small size and innovative
technology make the Digital Socket the perfect calibration tool for checking
bolted connections, as well as a calibration device for a variety of torque
tools. Works in conjunction with WREN servo electric wrenches to guide
correct torque and fast bolt tightening
Contact Us
Technical Parameters

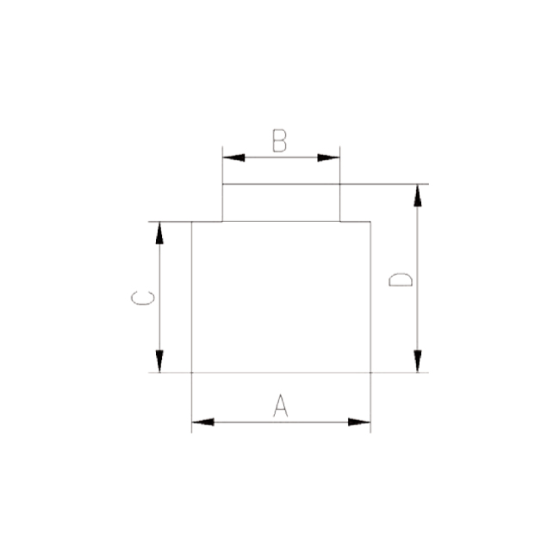

Model | Torque | Square Drive Size | Weight | Size（mm） | |||
N.m | kg | A | B | C | D | ||
33mm3/4" | 200~2000 | 3/4" | 1.5 | 72 | 54 | 65 | 87 |
36mm3/4" | 200~2000 | 3/4" | 1.4 | 72 | 44 | 70 | 87 |
36mm1" | 200~2000 | 1" | 1.2 | 72 | 54 | 65 | 87 |
41mm1" | 200~2000 | 1" | 1.2 | 74 | 54 | 65 | 87 |
46mm1" | 200~2000 | 1" | 1.2 | 74 | 54 | 65 | 87 |
50mm1" | 400~4000 | 1" | 1.5 | 86 | 54 | 69 | 89 |
55mm1" | 400~4000 | 1" | 1.5 | 86 | 54 | 69 | 89 |
60mm1" | 400~4000 | 1" | 1.5 | 89 | 54 | 69 | 89 |
65mm1.5" | 1100~10800 | 1.5" | 4.9 | 115 | 86 | 89 | 121 |
70mm1.5" | 1100~10800 | 1.5" | 4.7 | 115 | 86 | 89 | 121 |
80mm1.5" | 1100~10800 | 1.5" | 4.2 | 115 | 86 | 89 | 121 |
90mm1.5" | 1600~16000 | 1.5" | 6.2 | 131 | 99 | 97 | 132 |
100mm1.5" | 1600~16000 | 1.5" | 7.7 | 146 | 99 | 104 | 136 |
