DHP-380x4 Series Double Engine High Speed Hydraulic Pump

DHP-380x4 Double Engine High Speed Hydraulic Pump

High efficiency cooling system makes the pump suitable in extreme environment

Compact automatic three stage flow, can start in high pressure

Applicable on one or two wrenches simultaneously, Optional components(FP4), can operate four wrenches at the same time

Aluminum oil tank with gauge,Infinitely variable pressure adjustment between 70～ 700 bar

Contact Us

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump

Technical Parameters

Technical Parameters

Model	DHP-380×4
Working pressure	70MPa
Drive mode	Electric
Source of power	380V/50Hz
Power	2.2kW×2
Tank capacity	30L
Flow(low-mid-High)	20-8.2-2.8L/min
Cooler	Yes
Weight	63.5kg
Oil outlet	8×1/4"NPT
LxWxH	650×442×680mm

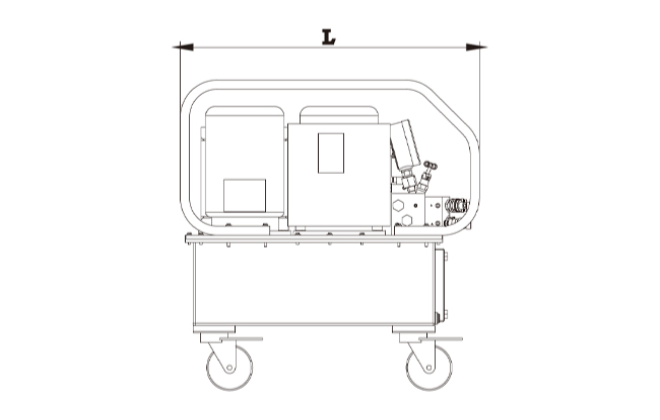

Size Chart

Double Engine High Speed Hydraulic Pump

Double Engine High Speed Hydraulic Pump
