DHP-220 Series Double Engine High Speed Hydraulic Pump

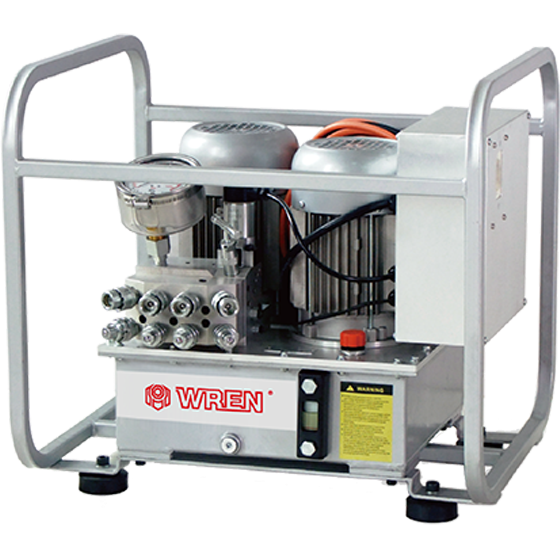

DHP-220 Double Engine High Speed Hydraulic Pump
Applicable on one or two wrenches simultaneously, Optional components (FP4), can operate four wrenches at the same time
High efficiency cooling system makes the pump suitable in extreme environment
Aluminum oil tank with gauge, Infinitely variable pressure adjustment between 70～ 700 bar
Compact automatic three stage flow, can start in high pressure
Contact Us
Double Engine High Speed Hydraulic Pump
Double Engine High Speed Hydraulic Pump
Technical Parameters
Size Chart
Technical Parameters

Model

DHP-220×4

Working pressure

70MPa

Drive mode

Electric

Source of power

220V/50Hz

Power

1.1kW×2

Tank capacity

13L

Flow(low-mid-High)

14-3.2-1.6L/min

Cooler

Yes

Weight

59.6kg

Oil outlet

8×1/4"NPT

LxWxH

500×580×531mm
