Custom Series Fully Automatic 3D Adjustment Jacking Machine

Custom Fully Automatic 3D Adjustment Jacking Machine

This equipment is custom‑developed for the giant block shipbuilding process, enabling precise 3D attitude control of ship blocks and cluster synchronous load‑bearing operations.Adopting PLC interlocking control combined with a Windows‑based intelligent control system, each unit is equipped with a microcomputer and connected to a synchronous controller via fieldbus, supporting cluster linkage of up to 99 units.Closed‑loop control is established using high‑precision pressure and displacement sensors to achieve dual regulation of synchronous X/Y/Z three‑dimensional displacement and force, with a displacement synchronization accuracy of up to 1 mm.It effectively improves the alignment precision of giant blocks and shipbuilding efficiency, suitable for various working scenarios such as dry docks and slipways.

Controlled by PLC and Windows‑based control software, it features a user‑friendly human‑machine interface (HMI).

It supports synchronous control of up to 99 units with a maximum synchronization accuracy of 1 mm.

It enables three‑dimensional displacement synchronous control, as well as 3D synchronous control for multiple units.

Equipped with a force synchronization function, it realizes force synchronization while performing group displacement synchronous control.

Custom Display | Fully Automatic 3D Adjustment Jacking Machine

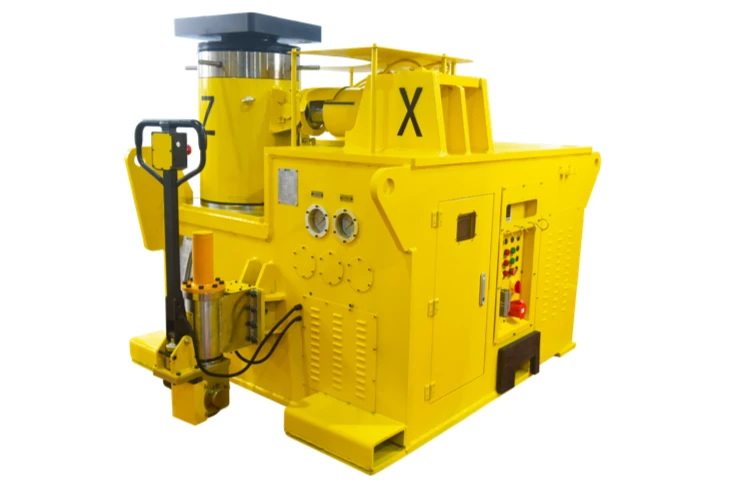

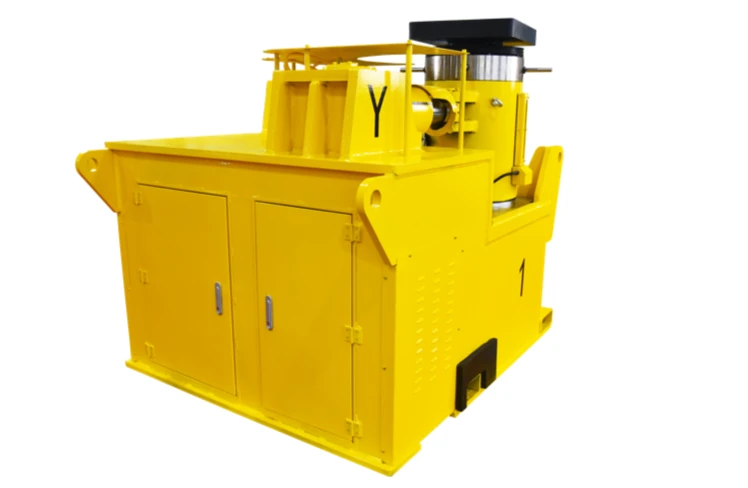

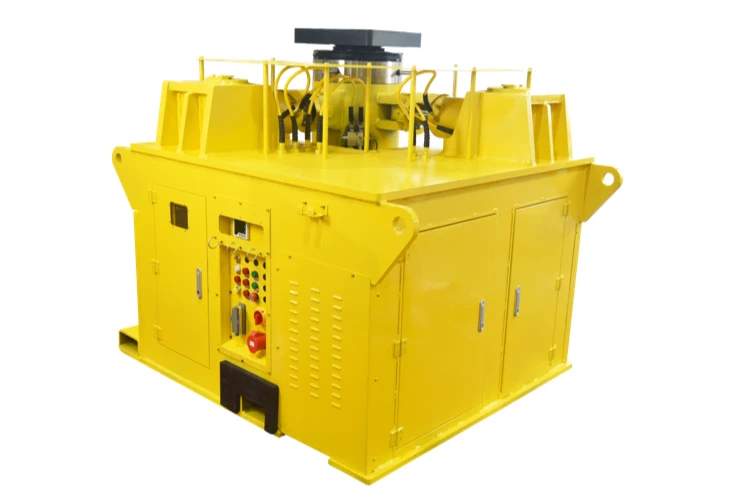

This equipment is custom‑developed for the giant block shipbuilding process, enabling precise 3D attitude regulation of ship blocks and cluster synchronous load‑bearing operations.

Each unit features a load capacity of 500 tons, with the number of units flexibly configurable according to block size and weight. It has a vertical adjustment range of 0–250 mm and a horizontal adjustment range of 0–150 mm. Equipped with built‑in hydraulic powered traveling function, it supports short‑distance autonomous transfer and adapts to various working scenarios including dry docks and slipways.

Adopting PLC interlocking control plus a Windows‑based intelligent control system, each unit is fitted with a microcomputer and connected to a synchronous controller via fieldbus, allowing cluster linkage of up to 99 units. Closed‑loop control is realized through high‑precision pressure and displacement sensors to achieve dual regulation of synchronous X/Y/Z three‑dimensional displacement and force, with a displacement synchronization accuracy of up to 1 mm, integrated with real‑time weighing function.

The equipment is operated via dual modes of touch screen and physical buttons, providing a user‑friendly and convenient human‑machine interface. The fieldbus communication design simplifies control wiring. With multiple advantages including heavy‑load bearing, precise attitude adjustment, cluster coordination and flexible transfer, it effectively improves the alignment precision of giant blocks and shipbuilding construction efficiency.
