CLR Series Double-Acting High Tonnage Cylinder

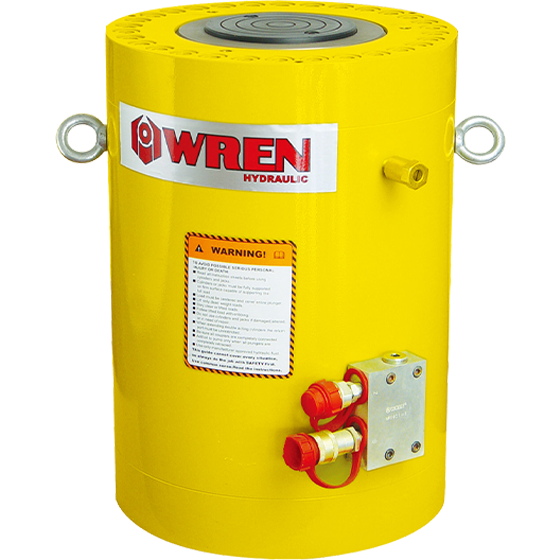

CLR Double-Acting High Tonnage Cylinder

Built-in safety valve helps to prevent accidental over-pressurization

Double-acting for positive retraction

Hydraulic lock can be installed

Overflow port functions as a stroke limiter

Optional tilt saddle

Technical Parameters

Model	Capacity(ton)		Stroke	Min Height	Outside Diameter	Effective Area(cm²)		Oil Capacity(cm³)		Saddle Diameter	Weight
Model	Push	Pull	mm	mm	mm	Push	Pull	Push	Pull	mm	kg
CLR1010	10	4.1	254	409	76	14.5	5.9	368	149	33	12
CLR1012	10	4.1	305	457	76	14.5	5.9	442	180	33	14
CLR506	50	22.6	150	325	127	70.8	32.3	1063	486	50	23
CLR5012	50	22.6	300	475	127	70.8	32.3	2126	972	50	34
CLR1002	100	43.3	50	183	188	132.7	61.9	664	309	75	39
CLR1004	100	43.3	100	233	188	132.7	61.9	1327	618	75	44
CLR1006	100	43.3	150	283	188	132.7	61.9	1991	928	75	50
CLR1008	100	43.3	200	333	188	132.7	61.9	2655	1237	75	56
CLR10010	100	43.3	250	383	188	132.7	61.9	3318	1546	75	63
CLR10012	100	43.3	300	433	188	132.7	61.9	3988	1856	75	89
CLR1502	150	68	50	210	216	201	97.2	1005	486	94	39
CLR1504	150	68	100	260	216	201	97.2	2011	972	94	52
CLR1506	150	68	150	310	216	201	97.2	3016	1458	94	65
CLR1508	150	68	200	360	216	201	97.2	4021	1944	94	78
CLR15010	150	68	250	410	216	201	97.2	5027	2430	94	92
CLR15012	150	68	300	460	216	201	97.2	6032	2916	94	105
CLR2002	200	93	50	235	242	265.9	133.1	1329	665	100	67
CLR2006	200	93	150	335	242	265.9	133.1	3988	1997	100	92
CLR20010	200	93	250	435	242	265.9	133.1	6647	3329	100	117
CLR2502	250	107	50	236	288	366.4	152.6	1832	763	150	105
CLR2506	250	107	150	336	288	366.4	152.6	5496.5	2289	150	141
CLR25010	250	107	250	436	288	366.4	152.6	9161	3815	150	176
CLR3002	300	121	50	312	325	456.2	172.6	2281	886	139	204
CLR3006	300	121	150	412	325	465.2	172.6	6843	2589	139	252
CLR30010	300	121	250	512	325	456.2	172.6	11404	4316	139	299
CLR4002	400	138	50	370	367	559.9	196.8	2799	984	159	281
CLR4006	400	138	150	470	367	559.9	196.8	8399	2952	159	342
CLR40010	400	138	250	570	367	559.9	196.8	13998	4921	159	405
CLR5002	500	168	50	360	405	730.6	239.7	3653	1199	228	411
CLR5006	500	168	150	460	405	730.6	239.7	10959	3596	228	493
CLR50010	500	168	250	560	405	730.6	239.7	18265	5994	228	575
CLR6002	600	207	50	430	450	855.3	295.4	4277	1477	247	494
CLR6006	600	207	150	530	450	855.3	295.4	12830	4431	247	586
CLR60010	600	207	250	630	450	855.3	295.4	21383	7385	247	678
CLR8002	800	252	50	417	515	1164	360	5821	1800	297	759
CLR8006	800	252	150	517	515	1164	360	17462	5399	297	885
CLR80010	800	252	250	617	515	1164	360	29104	8998	297	1019
CLR10002	1000	313	50	566	580	1465.7	447.6	7329	2239	323	1012
CLR10006	1000	313	150	666	580	1465.7	447.6	21986	6718	323	1168
CLR100010	1000	313	250	766	580	1465.7	447.6	36644	11197	323	1325
