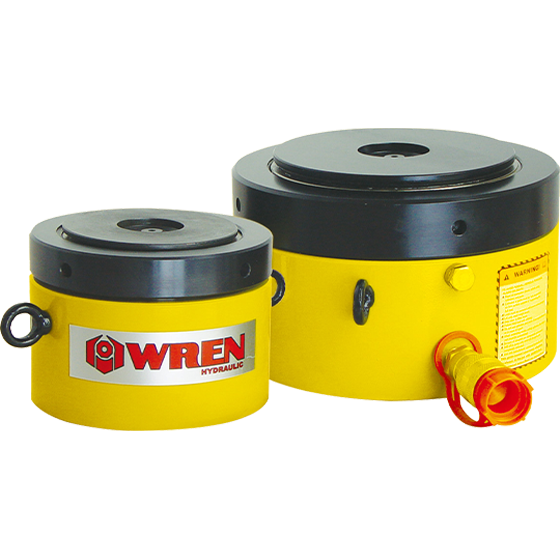

CLP Series Single-Acting Pancake Lock Nut Cylinder

CLP Single-Acting Pancake Lock Nut Cylinder

Ultra-thin design enables use in applications where standard hydraulic cylinders cannot be applied

Single-acting cylinder with gravity return

Special load-bearing system withstands up to 3% eccentric load

Self-locking system allows the load to be maintained for extended periods after pump removal

Built-in over-stroke protection valve ensures safe operation

Baked paint finish provides enhanced corrosion resistance

Contact Us

Single-Acting Pancake Lock Nut Cylinder

Single-Acting Pancake Lock Nut Cylinder

Technical Parameters

Technical Parameters

Model	Capacity	Stroke	Min Height	Outside Diameter	Effective Area	Oil Capacity	Saddle Diameter	Weight
Model	ton	mm	mm	mm	cm²	cm³	mm	kg
CLP602	60	50	125.5	140	86.6	432	96	15
CLP1002	100	50	137	175	143.1	716	126	26
CLP1602	160	45	148	220	227	1022	160	44
CLP2002	200	45	155	245	283.5	1276	180	57
CLP2502	260	45	159	275	366.4	1649	200	74
CLP4002	400	45	178	350	559.9	2519	250	134
CLP5002	520	45	192.2	400	730.6	3287	290	189
