Square drive hydraulic torque wrench

AVANTI Series Square drive hydraulic torque wrench

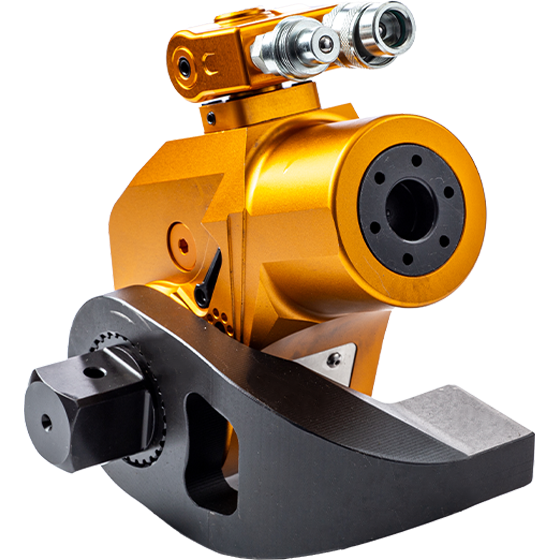

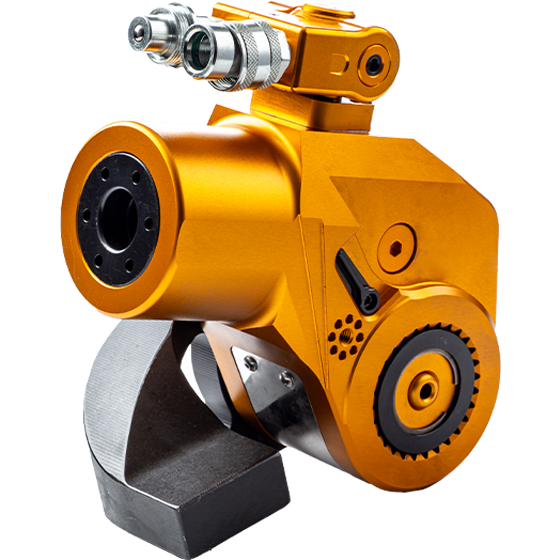

AVANTI Square drive hydraulic torque wrench

The AVANTI hydraulic torque wrench offers the widest torque output range, with a maximum output exceeding 62,538 N·m.The newly designed coaxial double-spline drive shaft ensures that the action and reaction forces cancel each other out coaxially, exerting no torsional force on the fuselage and significantly enhancing safety and service life.Widely used worldwide, AVANTI is a reliable next-generation bolt tightening solution in the industry.WREN provide after-sales service all over the world, and already got the approved by TUV certificate

One-piece integrated fuselage with an ultra-high strength and wear-resistant shell, featuring a maximum bearing strength of 206,800 MPa and an accuracy of ±3%

Coaxial double-layer spline drive shaft: the front reaction arm is combined with the drive shaft along the bolt axis, allowing 360° rotation. The action and reaction forces share the same axis, canceling each other out without offset load, exerting no torsional force on the fuselage and ensuring safer operation and longer service life

Synchronized tightening button ensures simultaneous bolt tightening and quickly releases the check pawl, facilitating the removal of the tool from the working position

Technical Parameters

Operating Condition Examples

Size Chart

Optional Accessories

Technical Parameters

Model	Torque (N.m)	Weight (kg)	Square Drive
Model	Torque (N.m)	Weight (kg)	Square Drive
AVANTI07	100-1005	1.4	3/4"
AVANTI1	174-1741	2	3/4"
AVANTI3	423-4235	4.3	1"
AVANTI5	725-7253	7	1.1/2"
AVANTI8	1044-10449	14.3	1.1/2"
AVANTI10	1596-15961	20.5	1.1/2"
AVANTI20	2425-24255	21.7	2.1/2"
AVANTI50	6253-62538	57.1	2.1/2"

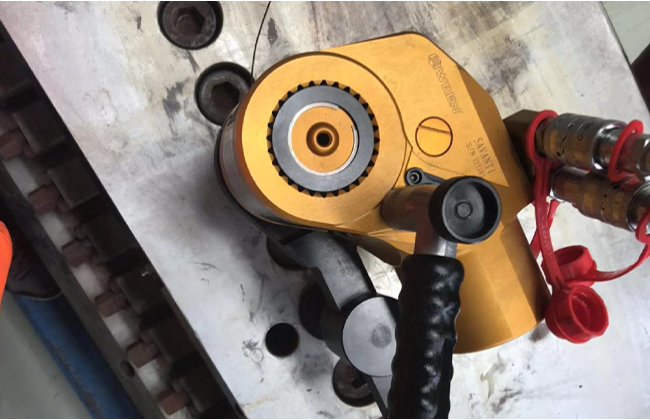

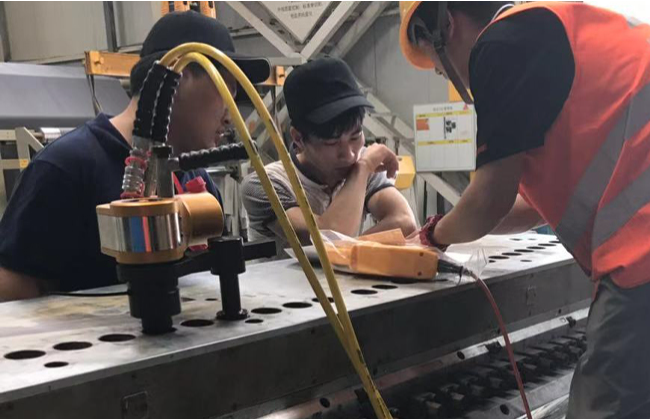

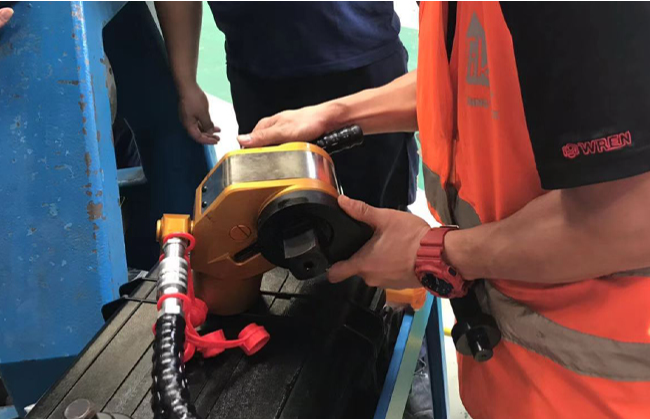

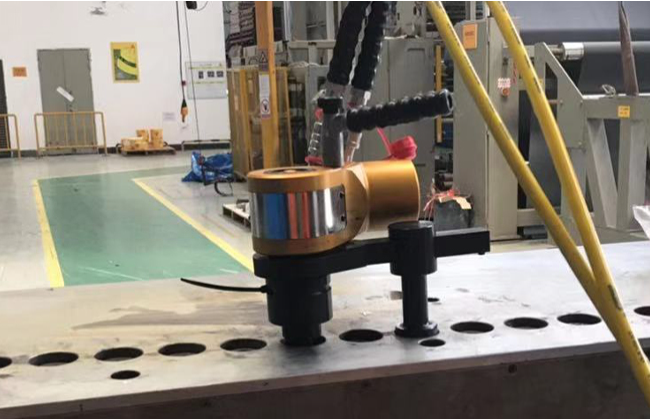

Operating Condition Examples

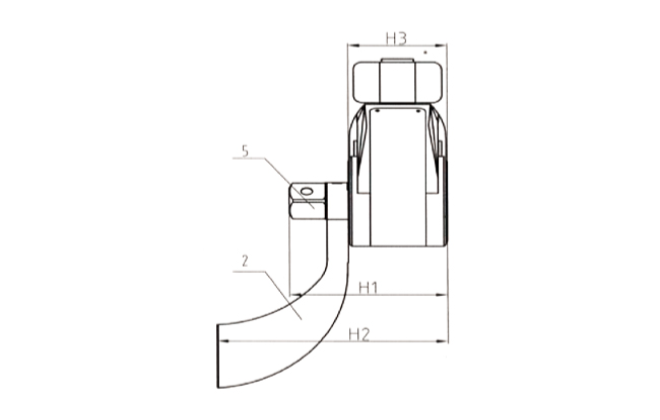

Size Chart

Model	Size ( mm )
Model	R	L	H1	H2	H3	H4
AVANTI07	25	104	76	108	46	102
AVANTI1	29	128	89	130	56	121
AVANTI3	41	175	121	177	74	167
AVANTI5	48	201	150	205	87	192
AVANTI8	52.2	224	168	235.2	100.2	178.2
AVANTI10	60.3	252	180.7	257.5	110.5	198.6
AVANTI20	66	278.5	230		128.5	260.6
AVANTI50	100	395	283		178.8	356.4

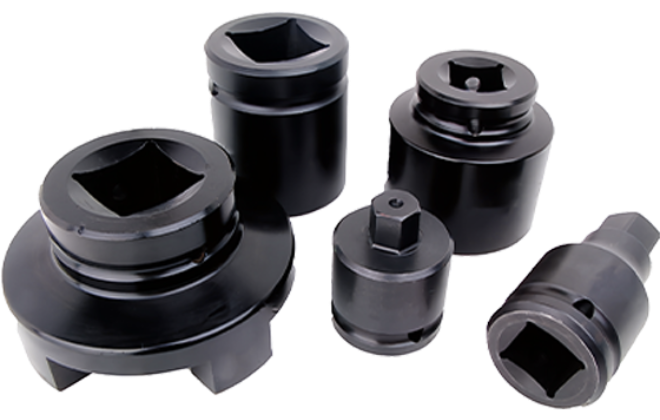

Optional Accessories

If you need to customize a special reaction arm, socket, or other supporting components, please feel free to contact us!
